Bimba 8" stroke stainless air cylinder 2" bore
BIMBA 8" STROKE STAINLESS AIR CYLINDER 2" BORE

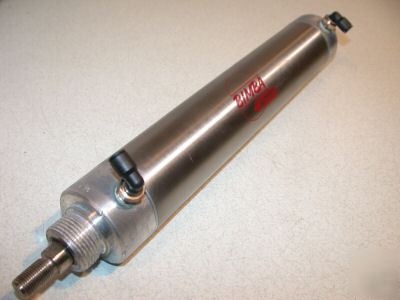

This is a Brand New Pneumatic Bimba Front Nose Mounting and Black clevis Mount Air Cylinder, Model # D-10423-A-8 with 8 inches of stroke with a 5/8"(.625) piston threaded on the end.
Cylinder measures 2.08" Diameter and has 2" Bore.
Ground and Polished 303 Stainless Steel Piston Rod
Force Exerted Approximately 3.1 Times the Air Line Pressure
Rod threads roll formed for high strength
304 stainless steel body with mirror finish ID for long, reliable life.
Piston-to-rod connection is threaded, sealed and riveted securely in place.
Blow-by flats on double acting model pistons ensures proper seal inflation.
Includes Rear clevis mount and air ports shown
http:// /pdf/catalogs/FL_OriginalLine.pdf
I will fully guarantee this great cylinder.
Thanks for looking! If you have any question on this item please call us at 1-(***)-826-3433 (9 - 5pm Eastern).
