Ge transformer 9T23B3873 45 kva 45KVA 480 / 208 / 120 v

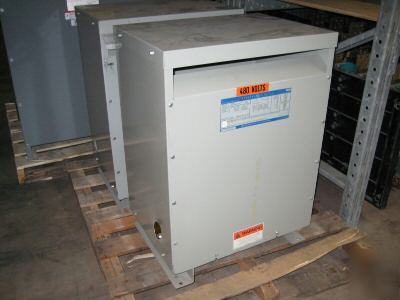

These Three Phase Transformers came out of an environmentally controlled facility where they were regularly maintained and serviced until factory shut-down. These transformers are in Great condition both Externally and Internally.
Model No.: 9T23B3873 Freq: 60 Hz
Assembly No.: 475A541WAG002 R0 3 Phase
45.0 KVA 150 Deg. C Rise 4.3 % IMP
Primary (H) 480 Volts (Line-Line)
Secondary (X) 208 Volts (Line-line)
Transformer Type QL Ambient Temp 40C Max.
220 Deg C Ins System Approx Weight 352 lbs

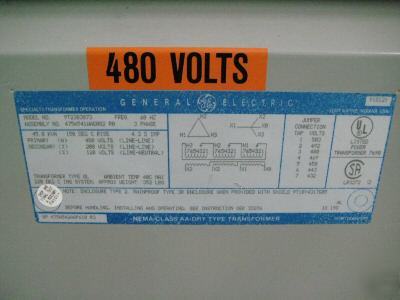

For additional specs, see picture of nameplate below
If you need more photos, I can send them to you. If you have any questions, I will do my best to answer them. Please be as specific as you can.
Our business has been in operation for over 20 years.
