Grizzly 6" jointer w/ shelix bird spiral cutter head

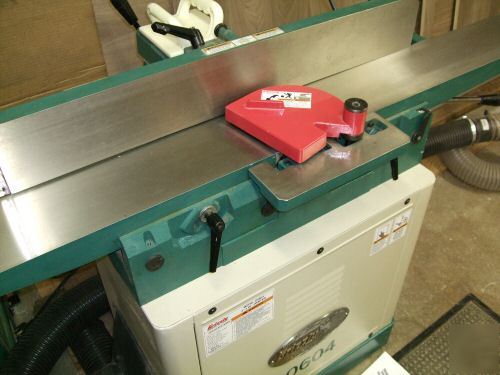

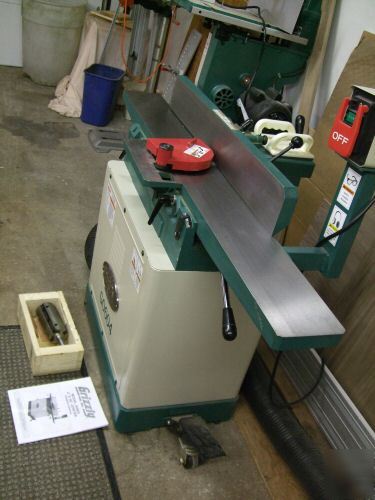

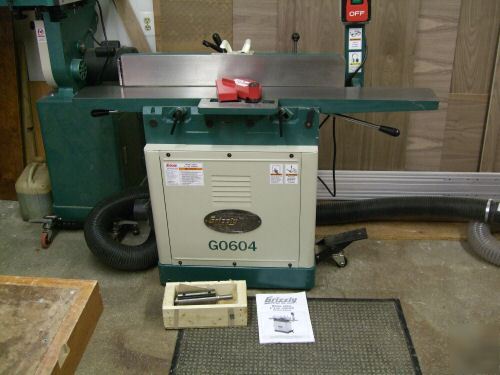

Building on the success of our larger G0490 8" parallelogram jointer, we have created a 6" model with everything you could want. The extra long infeed table and fence makes for straighter cuts while the 1 HP motor gets the work done quickly. And with the built-in adjustment of the parallelogram design, you never need to worry about your tables not being parallel.
* Parallelogram table adjustment
* Top mounted switch controls
* Infeed and outfeed tables have lever control for convenient table height adjustment
* Motor: 1 HP, 110V, single-phase
* Precision ground cast iron table
* Floor to table height: 32-1/2"
* Precision ground 5" x 36" cast-iron fence
* Maximum depth of cut: 1/8"
* Cutterhead: 4-knife, 6" x 3/4" x 1/8"
* Cutterhead speed: 4,850 RPM
* Power transfer: V-belt drive
* Switch: standard push-button type switch with large off paddle for safety
* Fence system: positive stops @±45° & 90°

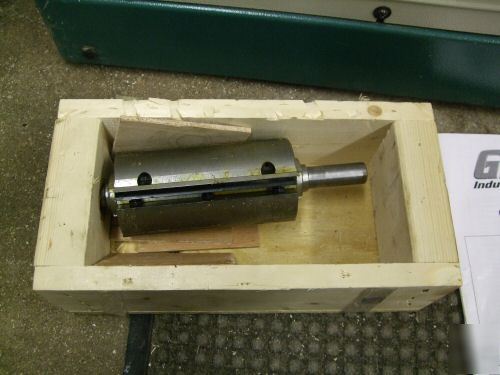

I wanted to add that the Shelix cutter head cost me $350.00 extra and that there is a 10 pack of replacement cutter inserts that is included. With the spiral cutter head , inserts and the price of the jointer this package cost me over $1000.00 (jointer 670.00 , cutter head 350.00 inserts 50.00 = $1070.00) so this is a great deal for any serious woodworker.
