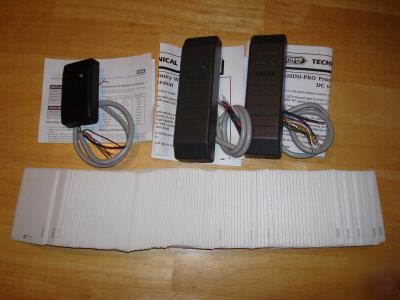

Hid card readers and cards


WORKS WELL WITH ADEMCO VISTA SERIES
Accepts 5- to 16volts&meeting most voltage requirements.
Available with Wiegand or Clock-and-data interface.
Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling of new cable required.
Offers high reliability, consistent read-range and low power consumption in an easy-to-install package.
Mounts directly onto metal with no change in read range performance.
Provides multicolor LED, compatibility with all standard access control systems and internal or host control of LED and beeper.
6.0" x 1.7" x 1.0"(15.2 x 4.3 x 2.54 cm)
Linear power supplies are recommended.
Average: 30 mA (5 VDC); 20 mA (12 VDC)
Peak: 110 mA (5 VDC); 110 mA (12 VDC)
-22° to 150° F (-30° to 65° C)
0-95% relative humidity non-condensing
With terminal strip: 3.5 oz. (99 gm)
With pigtail: 3.8 oz. (108 gm)
Haz. Loc. MiniProx: 3.8 oz. (108 gm)
Wiegand interface: 500 feet (150 m)
Clock-and-data interface: 50 feet (15 m)
Recommended cable is ALPHA 1295 (22 AWG)
5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control.
FCC Certification, United States
EU and CB Scheme Electrical Safety (EN60950 and IEC60950 ITE Electrical Safety)
Fifteen EU Countries under the R&TTE Directive (EN 300330 - SRD, and ETS 300 683 - EMC)
Thank you for looking and good luck.
