Hobart ac/dc stick~tig welding~welder~weld~foot control

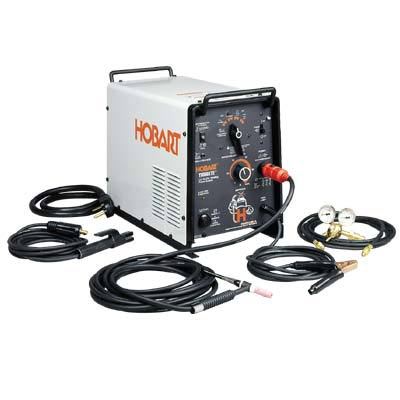

Hobart TIGMATE AC/DC Stick and TIG Welding Package
Mfg Warranty: 5/3/1 Industrial Warranty; See below
Delivery Time: 5-10 Business Days
* Low frequency output won't interfere with electronics
* Single-phase unit has exclusive built-in arc assist for both AC and DC and TIG plus foot control for easier use
* Process switch automatically sets for TIG or stick welding
* 12ft. work cable with clamp
* AC/DC rated output at 20% duty cycle: 150 Amps at 15V
* Electrode holder and 15ft. cable with quick-connect
* Gas regulator, flowmeter and shielding gas hose
* Upgraded circuitry gives you finer TIG output adjustment with the remote foot control. If you need more output while using the remote control, simply increase the setting of the front panel amperage control
* AC output for superior aluminum welding, DC output for mild and stainless steel
* AC Amp range is 20 to 165; DC Amp range is 23 to 132
* Four-position polarity and range selector switch offers two AC current ranges, DC electrode (-) for TIG, and DC electrode (+) for Stick
* Special arc starting circuitry eliminates high-frequency starts
* Built-in arc assist stabilizer for AC TIG on aluminum
* Built-in arc assist starter for DC TIG
* Process switch automatically sets machine for TIG or Stick
* Unique "flow-through" shielding gas TIG torch connection allows removal of torch without tools
* Preset automatic postflow timer protects tungsten tip, workpiece and torch
* Automatic high temperature shutdown
* 18in. H x 13in. W x 25 1/2in. D
* 5 year warranty on transformers, stabilizers, reactors, rectifiers, rotors, stators and brushes
* 3 year warranty on drive systems, PC boards, solenoid valves, switches and controls
* 1 year warranty on MIG guns, plasma torches, relays, contactor, triggers, regulator, accessories, spool guns, battery, field options and running gear. (90 days for industrial use.)
* Normal wear items such as drive rolls, contact tips, nozzle, plasma torch tips and electrodes and weld cables are not covered under warranty.
