Motch MVSL315 inverted turning center turnover station

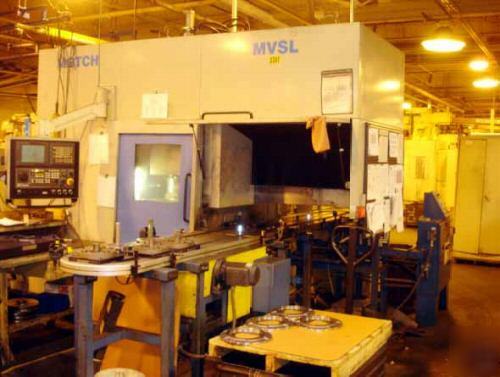

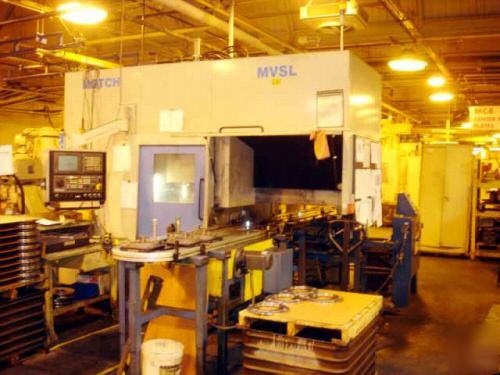

MOTCH MODEL MVSL315 INVERTED CNC TURNING CENTER WITH TURNOVER STATION
The Self Loading Design Of The Motch Model MVSL315 Eliminates The Need For A Robot. The Inverted Spindle Picks Up The Part And Moves It To The Work Area For Machining. After Machining The Spindle Unloads And Repeats.

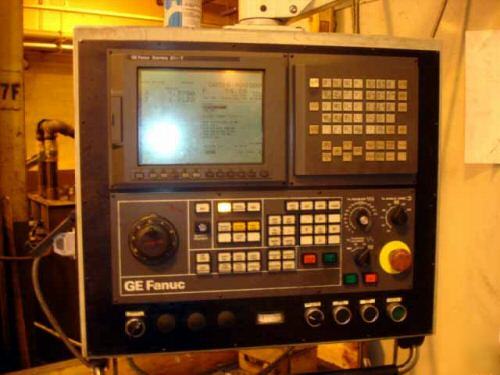

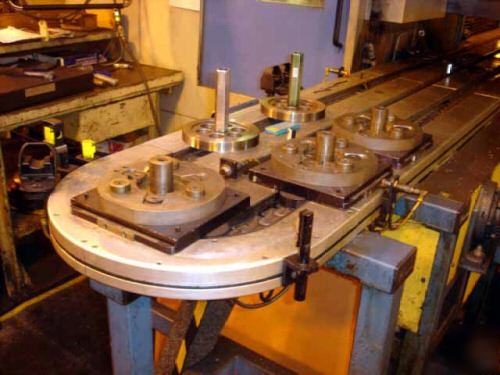

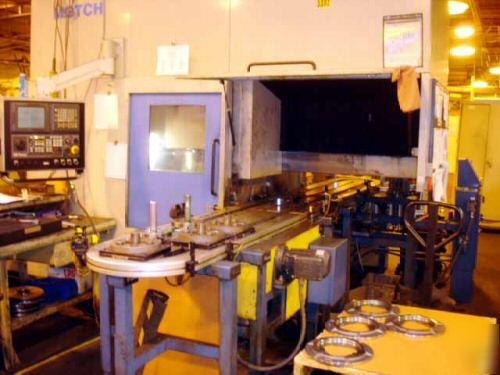

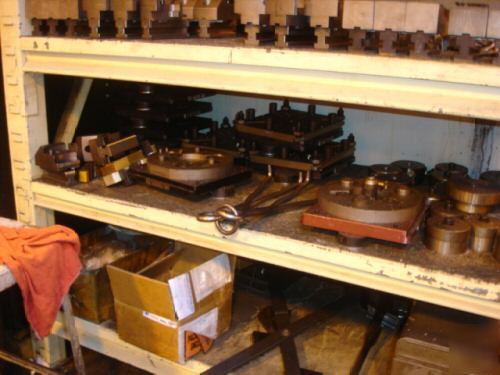

Wes-Tech Automated Systems "Tech-Trak" Pallet Transfer System With A Part Turnover Station. Approximately (12) 9" X 9.5" Pallets. 12" 3-Jaw Hydraulic Chuck. GE Fanuc 21i-T CNC Control. Tool Probe. 8-Position Turret. Coolant System. Chip Conveyor. Spindle Chiller. Miscellaneous Toolholders.
Maximum Turning Diameter 15.75"
Spindle Diameter (Flat Nose) 8.66"
Spindle Drive (Continuous) 45 HP
Electrics 3 phase, 60 cycle, 480 volt
X-Axis Travel (Work Area) 12.20"
X-Axis Travel (Load/Unload) 33.46"
X-Axis Rapid Traverse Rate (Load/Unload) 1575 IPM
X-Axis Rapid Traverse Rate (Work Area) 945 IPM
Z-Axis Rapid Traverse Rate 945 IPM
