Slant/fin slant fin 4FT. hd-850 baseboard enclosure

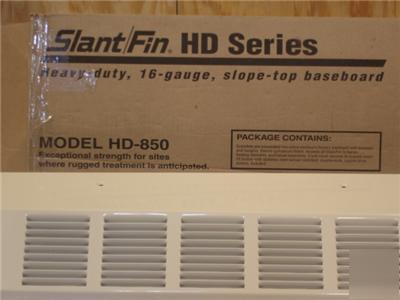

Slant/Fin 4ft. HD Series Baseboard Enclosure
Slant Fin Model HD-850 Baseboard Enclosure.
This enclosure normally sells for $ 15.85 per foot = $ 63.40 per 4 foot length.
For more information click on the manufacture's data sheet; http:// /documents/115.pdf
HD Series: Heavy Duty Baseboard
The extraordinary strength of HD Series baseboard makes it ideal for installation in sites where rugged treatment is anticipated. HD Series is especially recommended for schools, institutions and multi-family housing. Its compact size and high output make it suitable for a wide range of new and retrofit applications. In addition to heavy gauge enclosure and support brackets, HD Series baseboard cover is secured in place with screws at each bracket location. 3/4", 1" and 1-1/4" copper/aluminum elements permit higher flow rates, longer series-loop runs and lower pump loads where required. With the 1-1/4" all-steel element, HD Series is perfect for use in one or two pipe steam systems. HD Series is factory pre-assembled in individual cartons for rapid installations.
PACKAGING: Complete two-piece enclosure assembly factory packaged with necessary brackets and hangers.
CONSTRUCTION: Full back panel with interlocking slope-top front panel. Bracket with element guide spot welded to back panel every 24" alternating with cabinet spacer welded to back panel every 24" giving rigid support to front every 12". There are dimpled anchoring holes every 12". For fastening front to brackets, use 8 x 3/8" self tapping screws with countersunk head as supplied in carton. Pencil proof louvers. Damper optional.
Failure to pay for items or contact me will result in a Re-Listing of the item.
Evco Mechanical is a well established HVAC, Solar Energy, Plumbing and Electrical Contractor. We have over 25 years of service and install experience in New Jersey.
