Payne's pallet inverter. 180 deg rotator, load transfer

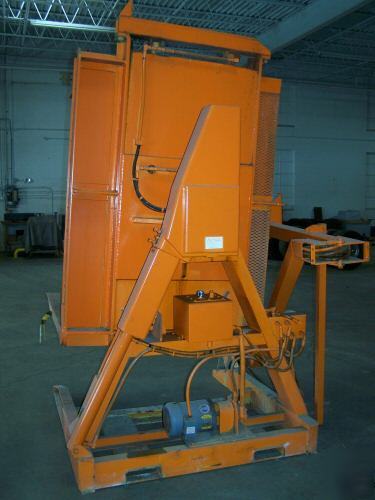

Free Standing, easily moved with fork lift.
Fork Lift Loading Pallet Inverter. 220 / 440v. tested and working. this unit has the extendable controls so the fork truck driver can operate from the cab.
adjustable pressure from zero to 2000psi, 2 lever controls, one for clamp/unclamp and one for rotation.
overall size 5'6" wide x 5'9" deep x 8'10" high. (7'10" high for transport)

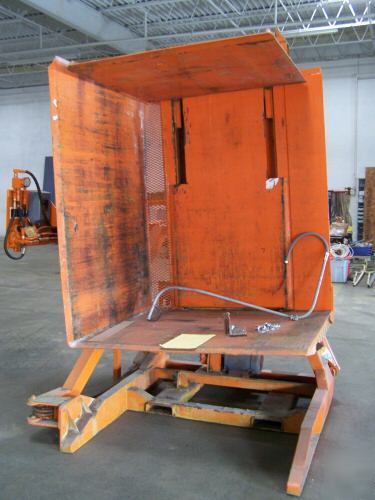

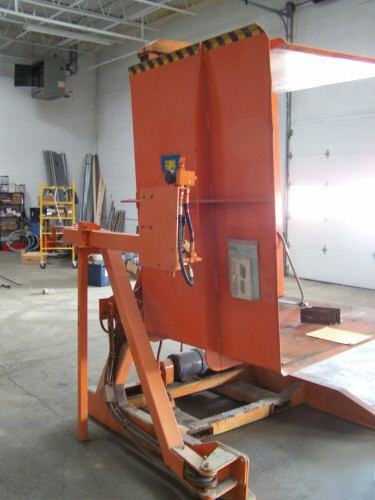

* Free Standing 180 degree Inverter with Single Clamping Plate.
* Quick, efficient pallet to pallet transfer and load inversion.
* Available in a variety of sizes and models to meet your individual needs.
* Can be transported and loaded by forklift.
* Safety rails and guards (as shown)-standard.
* Control options range from standard pendant controls to fully automated systems.
* Easy load transfer from wood pallet to plastic pallet, slip sheet or rental pallet.
* By eliminating the need to stack and restack product, pallet inverters contribute to worker safety and ergonomics.
* Quick, efficient removal of broken or damaged product.
* Significant reduction in back injuries.
* Flexibility for easy transfer to in-house or Chep rental pallets.
Various uses in the Food & Warehousing Industry
* Products arriving on poor quality pallets that will be racked in a high bay system must be switched to a good quality pallet.
* Raw materials that arrive on wood pallets in food and pharmaceutical plants can be transferred to plastic, or aluminum type pallet.
* Retain quality in-house pallet or plastic pallets.
* Transfer pallet loads on to treated pallets.
I.E. Pallets being sent to Australia, Brazil, China and Europe
* Invert pallet load with broken or burst bag, usually this is on the bottom where the forks have missed the pallet.

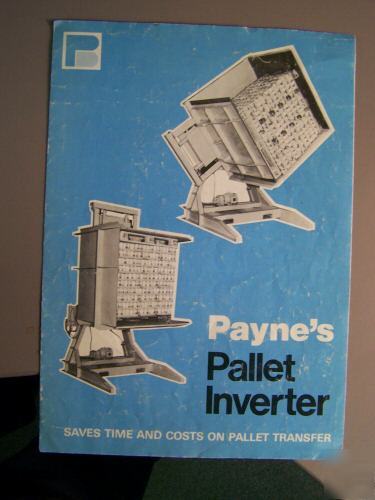

here's the manufacturer's website: http://www.paynepalletinverters.co.uk/
here's a website with uasge information: http://palletinverter.com/inverters/fs-inverter.html
