> New ( ) wilton 12"X20" semi-auto horizontal bandsaw
New ( ) wilton 12"X20" semi-auto horizontal bandsaw

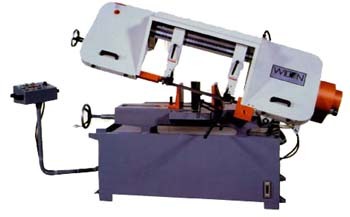

12" x 20" SEMI AUTOMATIC HORIZONTAL BANDSAW
* Equipped with Wilton's exclusive swivel control panel which allows the operator to access controls from the front or back of the machine
* Patented Rapid Acting 3 jaw vise for simple, fast, and accurate set up. For standard cut offs, the ridged design makes square cuts easy. This design improves operator safety, allows for faster set up, increases through put, thereby lowering costs per cut.
* Standard variable speed drive allows the operator to fine tune the blade speed to maximize the performance. This again results in higher efficiency and lower costs per cut.
* Blade wheel dia. - 17", cast iron
* Cutting capacity at 90 degrees - 12" round, 12x35" rectangle
* Cutting capacity at 45 degrees - 12" round, 12x12" rectangle
* Heavy duty transmission utilizes hardened and ground gears operating in an oil bath. This provides a smooth, quiet drive train and positive SFM to the blade.
* Saw head raised hydraulically after each cut
* Variable speed drive system allows the operator to fine-tune the blade speed fast and easily
* Exclusive swivel control panel
* Heavy duty transmission utilizes hardened and ground gears operating in and oil bath
* Counterbalanced feed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
* Saw head raised hydraulically after each cut
* Exclusively PATENTED 3 jaw vise allows for faster set-up
12" Round / 12" x 20" Rectangle
12" Round / 12" x 12" Rectangle
82 to 262 SFPM, Variable speed
