Sentinel/pi f-20 dual shuttle impulse blister sealer


275 East 131st Street - Cleveland, Ohio 44108 U.S.A.

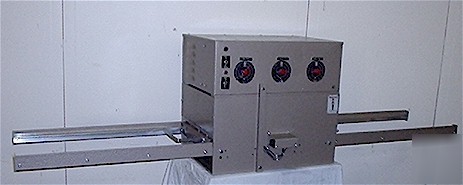

SENTINEL/PI F-20 DUAL SHUTTLE IMPULSE BLISTER SEALER
MACHINE IS RECONDITIONED IN GOOD WORKING ORDER.
AUTOMATIC / FAST SEAL CYCLE – APPROX. 1 SECOND.
SEALS DIRECTLY THROUGH THE BLISTER.
USES ENERGY ONLY DURING SEALING PROCESS.
SEPARATE SEAL TIMERS FOR FRONT AND REAR SEAL TRAYS.
CAPABLE OF SEALING PLASTIC TO PLASTIC – CLAMSHELL BLISTERS.
QUICK AND EASY CHANGE OVER – TOOLING IS IN THE TRAY.
110 Volt AC / Single Phase / 5 Amp (control) and
220 Volt AC / Single Phase / 20 Amp. (impulse transformer).
AIR PRESSURE REQUIRED: 80 P.S.I.
SEAL PLATTEN SIZE: 22 in. long x 15 in. wide.
MAXIMUM EFFECTIVE SEAL AREA: 21 in. long x 13 in. wide.
Dimension from rail to top of seal platen – 3 in.
Dimension from rail to machine base – 4 in.
MACHINE DIMENSIONS: 78 in. long x 20 in. wide x 21 in. tall.
