10" SURFACE GRINDER, Acer AGS-1020AHD Auto In
10" SURFACE GRINDER, Acer AGS-1020AHD Auto In

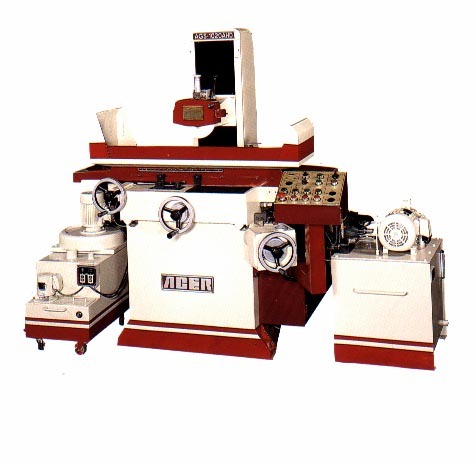

"NEW" ACER HIGH PRECISION SURFACE GRINDER
MODEL: AGS-1020AHD - 3 Axis Automatic
Reinforced high column & heavyweight Meehanite casting.
Direct drive spindle equipped with 4 ABEC-7 angular contact
Auto surface & plunge downfeed
Double-V crossfeed ways; one V, one flat table ways.
Dual hydraulic pump system: one for the auto incremental
downfeed and one for the table longitudinal travel
Double nut design for crossfeed leadscrew
19 3/4" \ 23 1/2" from table top to the center of spindle.
Extra wide saddle at 24 1/2" and 30 1/2" each.
Working Surface of Table (W x L): 9" x 20"
Max. Grinding (W x L): 10" x 20"
Distance Between Table Surface & Spindle Center: 19-3/4"
Variable Speed by Hydraulic Cylinder: 16 - 80 FPM
Automatic Crossfeed Carriage Movement: 0 - 1"
Downfeed Handwheel Dial: Per Graduation 0.0005" - Per
Crossfeed Handwheel Dial: Per Graduation 0.001" - Per
Auto Downfeed Micro Adjustment Dial: Per Graduation
0.0001" - Per Revolution 0.01"
Longitudinal Travel (from - to): 6 - 20"
Crossfeed Travel (from - to): 0 - 10"
Hydraulic Pump Motor: 2 hp x 4 p
Auto Crossfeed Motor: 1/5 hp x 6 p
Grinding Wheel (O.D. x T x I.D.): 8" x 1-1/4" x 1/2" (3/4)
Rotation Speed of Spindle (Horizontal): 3500 RPM / 60 HZ
Flow Rate of Coolant Pump: 40 L/Min
Max Load Capacity in Addition to Magnetic Chuck: 700 lbs.
1 pc. Wheel Balancing Base 1 pc. Wheel Balancing Arbor
1 pc. Grinding Wheel 1 pc. Wheel Flange
1 pc. Diamond Dresser 1 pc. Halogen Light
1 set tool Box w/Tools 1 set Splash Guard
OPTIONAL ACCESSORIES (CALL FOR PRICES):
Acer 8" x 18" Permanent Magnetic Chuck
Walker 8" x 18" Permanent Magnetic Chuck (Fine Pole)
Walker 8" x 18" Electro Fine Pole chuck w/ Chuck Control
Coolant System Magnetic Separator & Paper Filter
"Newall" 2-Axis D.R.O. (12"x20" Travel, 0.0001" Resolution)
"Sony" 2-Axis D.R.O. (12" x 20" Travel, 0.00002" Resolution)
AGS-1020 AHD SPECIAL PACKAGE (add $2000)
- Dust Suction & Coolant System
- 8" x 18" Permanent Magnetic Chuck
Machine Location: HARRISON, NJ
Click Here For More Acer Machines
Click Here For More Grinders, Lappers & Hones - NEW SURFACE GRINDERS(s)
Call Kori at (***) 873-6224 ext 7555
Call Alex at (***) 873-6224 ext 7613
Finance This Equipment For Your Business - Click Here
Finance Equipment For Your Business - Click Here
* Machinery Values is one of the world's largest machinery dealers, in business since 1971.
* New machines are covered under their own warrantees. Details of each warranty can be found within the quotation for all new machines.
* Most items in our store are located in our warehouse in Harrison, New Jersey - about 9 miles from New York City. You may inspect any item prior to purchase, under power in most cases, simply by calling and arranging an inspection. There is no charge for this.
