Barber-colman valve & actuator va-7213-301-4-11

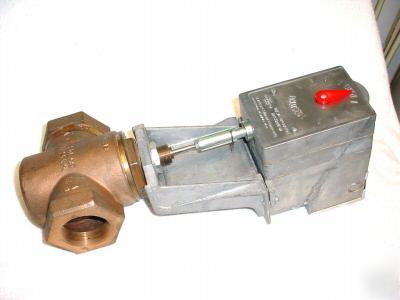

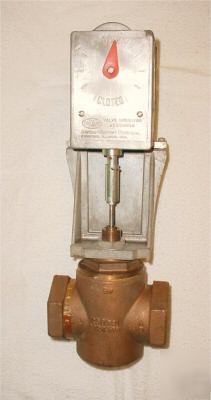

1ea Barber-Colman Stem Up Open Valve Actuator Assembly Model MA318, New Part No is VA-7213-301-4-11
Electrics are 24v\3.8amps\78Watts\60hz Geared Controller - Aluminum Enclosure -
Stainless Stem Rotating Rod Open\Close - Attached to a Brass Two-way Valve Model VB7213,
rated 250psi, 1724 kPa, Unit is a screwed NPT straightaway mount with two fxf (female to female)
threaded Connections that are 2" on either side for chilled or hot water or steam at 20 to 281 Deg F-
Max differential pressure for water 35psi and for steam 20psi - Spring loaded TFE -
I checked the internal gearing and the valve operating mechanism is all working properly,
The gear oil is a clean bright red as it should be, the valve also opens and closes properly,

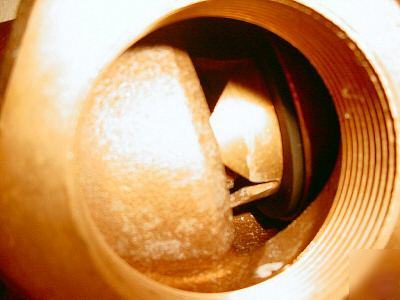

The seal looks like new and this unit is in excellent operating condition, see pics, new cost is $838
