Sciaky spot welder 75 kva model ep.1-22-75-12

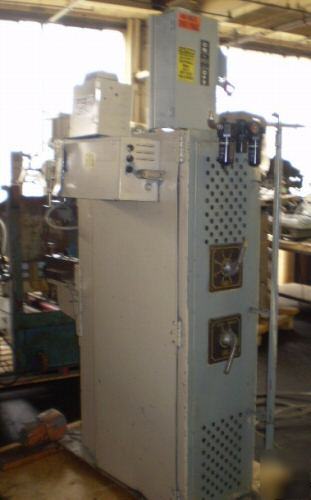

Sciaky Spot Welder, Model EP.1-22-75-12
* Water temperature minimum = 10.
* Water temperature maximum = 36.
* Water temperature minimum = 10.
* Water temperature maximum = 36.
Sciaky's intuitive and user-friendly, three-phase resistance welding control provides consistent, repeatable welding results.
Provides convenient access to functions such as Repeat, Sequence On/Off and Weld/No Weld.
Low Inertia Electrode Force System
The hollow ram is made of hardened and ground steel, guided by sets of preloaded, antifriction bearings. The ram, combined with the frictionless diaphragm head, comprises a force system with rapid response to follow changes as the weld nugget grows.
Variable Electrode Force Cycle
The pneumatic system can provide precompression and forging when welding parts made of highly resistive or crack-sensitive alloys.
Retraction strokes up to 6 inches provide the ability to reach welds on oversize parts.
The pneumatic system includes standard 24-VDC solenoid valves, filters, regulators, and lubricators. Sciaky contact gauges ensure that proper welding force is present before welding starts. The optional Programmable Air System makes the air pressure programmable from within the weld schedule.
Freight costs to be quoted at time of sale from zip code 06787.
All freight costs to be paid by the purchaser.
