Esab migmaster 250 mig welder package 37686


ESAB MigMaster 250 Compact Package
With 15 foot GM-250cc Torch and MT-250SG
208/230 vac, 1 Phase, 50/60 Hz. Argon
ESAB Welding and Cutting Products.
- 24 overlapping heat (voltage) steps for accurate fine tuning.
- Feeds wire from 20 to 650 ipm; pulse width modulated, solid state speed control.
- Built-in spool-on-gun control.
- DC welding output from 30 to 280 amps.
- Rated 250 amps at 50% duty cycle.
- Use with a wide variety of optional equipment-including Spot/Stitch/Anti-Stick Module, Digital Meter Module and more-for added versatility and convenience.
Rated DCCV Output (10 min base)
50% duty cycle, 60 Hz Input ........................... 250 amps @ 27 vdc
60% duty cycle (NEMA Class I), 60 Hz Input . 225 amps @ 29 vdc
40% duty cycle, 50 Hz Input ........................... 250 amps @ 27 vdc
Output Current Range ................................................... 30-280 amps
Open Circuit Voltage ............................................................... 55 vdc
Primary Input Voltage & Current
@ 250 amp rated load, 50/60 Hz, 1 phase
208/230/380/400/460/575 vac ................. 71/62/37/36/31/25 amps
Wire Feed Range ................................. 20-650 ipm (0.5-16.3 m/min)
Net Weight ................................................................ 210 lbs. (95 kg)
W x L x H ....... 19.5 in. (50 cm) x 40 in. (102 cm) x 32.25 in. (82 cm)

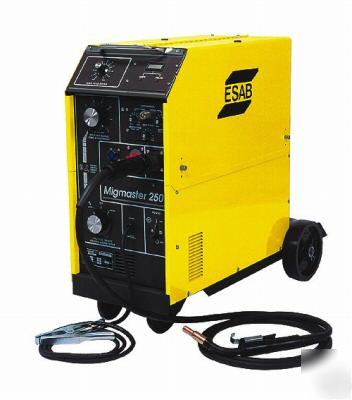

Shown with optional Spot/Stitch/Anti-Stick Module (32858)
and Digital Meter Module (32857)
Package includes power source with built-in wire feeder, factory-installed undercarriage and cylinder rack, GM-250cc Mig gun with .035in and .045in accessories, dual groove (.035in - .045in) feed roll, gas regulator with adjustable flowmeter, 6ft. gas hose, 15 ft work cable and clamp, 8ft primary input cable with plug, 10lb sample of .035 ESAB Spoolarc 87HP Hi Dep III Welding wire, and an ESAB Mig Welding Handbook.
ESAB Your Partner for Welding and Cutting!
Introducing the ESAB 100% Satisfaction Guarantee
In appreciation for your business, and to demonstrate our confidence in the products. Your purchase of an ESAB product not only comes with the standard warranty, we also offer a 100% Satisfaction Guarantee.
What's covered by the ESAB 100% Satisfaction Guarantee?
It covers every piece of ESAB welding equipment, every filler metal, every gas apparatus, and every hand plasma machine - every product that ESAB sells in the U.S., Canada, and Mexico, excluding the following: mechanized cutting machines; scarfing machines; automation equipment; spare parts; consumables; special orders; minimum run productions, and freight damage.
How to take advantage of of the 100% Satisfaction Guarantee.
Once you have purchased an ESAB product, simply fill out and return the warranty card included with the product. You can also register you equipment and/or filler metals at - just click the 100% Satisfaction Guarantee button on the home page, and fill out the the product information form. Fill out both the warranty and the 100% Satisfaction Guarantee, and press submit. This will automatically register and qualify your product for the 100% Satisfaction Guarantee.
For any additional information about the 100% Satisfaction Guarantee, please visit or call toll free at 1-800-ESAB-123
Feel free to call us at 920.882.0640 or
Toll-Free at 1-877-532-WELD from 7:00AM-5:00PM CST with any questions on this product.
