146818A A46D rtc real time clock ram MC146818AP 6800 ic

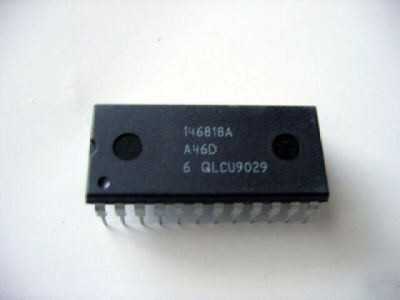

146818A A46D RTC Real Time Clock + RAM MC146818AP, MC146818P, 6800 Family IC
146818A is the Enhanced version of the MC146818P 8-bit CMOS Real-Time Clock-Calendar integrated circuit from Motorola's MC6800 family.
This RTC circuit has two distinct uses. First, it is designed as a battery powered CMOS part including all the common battery backed-up functions such as RAM, Time and Calendar. Secondly, the 146818A may be used with a CMOS Microprocessor to relieve the software of the timekeeping workload and to extend the available RAM of an MPU such as the MC146805E2.
The basic features of 146818A are:
- Internal Time Base and Oscillator
- Counts seconds, minutes and hours of the day
- Counts days of the week, date month and year
- Binary or BCD representation of Time, Calendar and alarm
- 12- or 24-Hour Clock with AM and PM in 12-Hour mode
- Daylight savings time option
- Automatic End of Month detection
- Automatic Leap Year compensation
- Microprocessor bus compatible
- 14 bytes of clock and control registers
- 50 bytes of general purpose RAM
