Tektronix 604 x-y-z monitor directed beam viewing scope
TEKTRONIX 604 X-Y-Z MONITOR DIRECTED BEAM VIEWING SCOPE, 9.8 X 12.2 CM SCREEN, BNC INPUTS

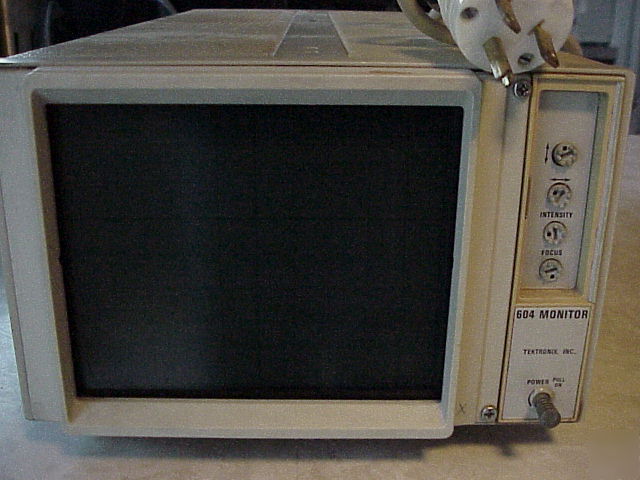

Front controls: TRACE up/down, TRACE left/right, INTENSITY/FOCUS, POWER on/off. X & Y bandwidths are DC to 2 MHz at 3 dB down from 80% of full screen. The deflection factor is nominally 1 V full scale. The Tektronix 604 is internally adjustable from 0.5 V to 2.5 V full scale. An internal 5X attenuator extends the deflection factor range to 12.5 V full scale. Te X-Y phase difference is not more than 1° to at least 500 kHz. On the Z-axis, the bandwidth is DC to 5 MHz over usable range. The sensitivity is adjustable from +1 V to +5 V for full intensity control. 0 V input cuts intensity off.
Rear panel has: X input bnc +/-, Y input bnc +/-, Z input bnc +/- & 25 pin REMOTE PROGRAM connector. The Tektronix 604 meets the requirements for applications such as pulse-height analysis, infrared detection, data communications systems testing, component & logic testing, vibration analysis, medical instrumentation, phase shifts & frequency ratios using Lissajous figures, & many others.
