Milling machine - mighty comet - #3 kvhd

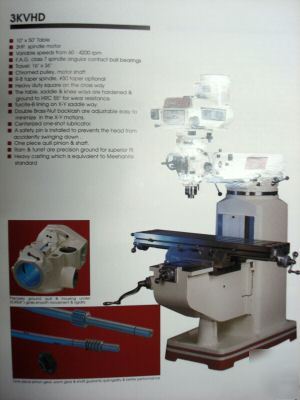

Mighty Comet # 3 KVHD-B Vertical Turret Milling Machine
Variable speeds from 60-4,200 rpm
F.A.g. class 7 angular contact spindle bearings
Chrome plated pulley and motor shaft
turcite-b on table and cross travel
Ball screws on table and cross eliminate backlash
One piece quill pinion and shaft
Ram and turret are precision ground for superior fit
Quill and housing ground to 0.0004†tolerance
Heavy casting weighs 3,050 lbs.
head moves left to right 90 degrees
head tilts front to back 45 degrees
power feeds quill .0015â€,.003 and .006
floor area left to right 68†overall depth 79†height 86â€
2 axis Fagor digital read outs featuring
inch metric convertion, axis reset,axis preset,absolute /incremental, part centering,bolt hole,
reader head moves on roller bearings, Accuracy +/- 10 microns 3 axis read outs with Z mounted on quill
X axis power feed 150/650 lbs.torque
Y axis powerfeed 150/650 lbs. torque
Knee powerfeed 150/650 lbs. Torque
are approximate and are not binding in any way. We endeavor to make information as complete and accurate
as possible. If you notice a decrepancy, please let one of our sales people know so that the error can be corrected.
