> Yokogawa OR100E used harmonic power quality meter
Yokogawa OR100E used harmonic power quality meter

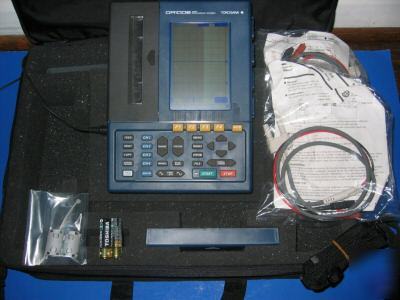

Like new! Includes Test leads (never used), carry case power cord and battaries.
Standard Model OR100E And Harmonic Analysis Model OR300E
The OR100E/OR300E series of Handy Oscillographic recorders are complete multi-purpose recorders featuring up to four isolated analog input channels, fax/modem capability using a PC card, four-mode powerful trigger functions. The OR300E also has a harmonic analysis function.
These recorders are small in size, with a footprint equivalent to a sheet of B5 paper, and weigh only 1.4 kg (not including battery weight). They can be used standalone for a wide range of applications, from low-speed/long-term continuous recording to high-speed recording of transient conditions.
Comparison of OR100E and OR300E
2-channel and 4-channel models
with harmonic analysis function.
Real-Time Recording, Memory, Real-
Time + Memory, Harmonic Analysis.
400 kS/s, effective 11-bit A/D, max 500Vrms input, temperature input
(with type K thermocouple and temperature input adaptor connected).
Approximately 190 (W) x 46 (H) x 256 (D)
1, 2, 5, 10, 20, 50, 100, 200, 500 ms/div
80 points/div (measurement period is 1/80 of time axis)
10, 20, 50, 100, 200, 400, 800, 1600, 3200*¹, 6400*² div
*¹ Only works on odd-numbered channel when two channels are connected together.
*² Only works on channel 1 when four channels are connected together.
32 maximum-varies depending on installed memory length, set memory length and whether or not wave window trigger is used.
Automatic printing, automatic statistical calculations, automatic saving (to external memory), automatic dialing (for faxing).
One cursor: Measurements on all channels displayed simultaneously. Two cursor: Time on all channels, as well as measurement differences or frequencies.
max/min/ave/rms for cursor range, surface area of cursor range.
Thermal paper roll (111mm (width) x 10 meters), effective recording width: 104mm.
2, 5, 10, 30 s/div; 1, 2, 5, 10, 30 min/div; 1 hour/div.
4 analog channels + 8 logic bits; 1, 2, and 4 division recording capability (logic recording can be turned on.off separately for each bit).
Measurements are recorded as digital values.
X1-Y1, Y2-Y3, X axis is always 1 channel only.
Recording size :8div x 8div (80mm x 80mm).
Recording format options: Dots, Lines.
20 div, 200 div, 800 div continuous.
Three line thicknesses (analog waveforms).
