Verson d-60 obi press

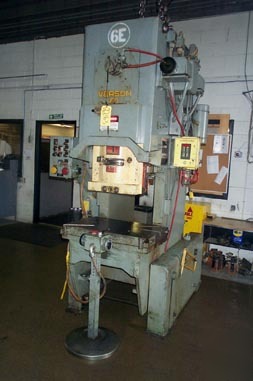

VERSON MODEL D-60 GEARED DESIGN OBI PRESS
Capacity: 60 Ton
Stroke: 4"
Shut Height Over Bed (SDAU): 14"
Slide Adjustment: 3"
Slide Area: 18" L-R x 12-1/2" F-B
Bed Area: 32" L-R x 21" F-B
Bed Opening: 17" L-R x 13" F-B
Distance Bed to Floor: 34"
Depth of Throat: 11"
Opening Through Back: 19"
Speed: 90 SPM
Pneumatically Actuated Wet Clutch and Brake with Selector Control
Verso-Matic Transmission (Entire Gear Train Running in Oil)
All Steel Welded Frame Construction
Arranged for Knockout R-L
Crankshaft Extension (Front)
EQUIPPED WITH:
10 HP Main Motor 230/460Volts/3PH/60HZ Currently 230
Electrical Controls
T-Slotted Bolster Plate (3" Thick)
Lincoln Automatic Lubrication System
Pedestal Mounted Dual Palm Button Operation
Stroke Position Indicator
Approximate Overall Dimensions: 60" L-R x 72" F-B x 120" H
Approximate Weight: 15,000 Lbs.
Serial Number: 22945 (New 1970)
P2 F.O.B. Elk Grove, IL - $ 9,000.00
