2003 haas mini-hmc horizontal machining center cnc mill

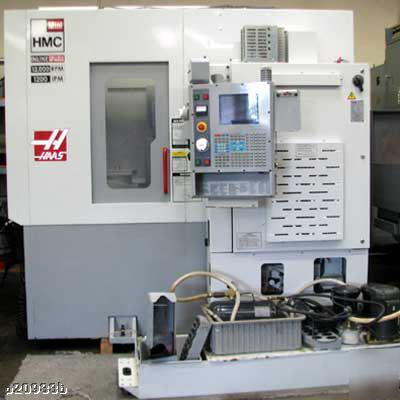

This 2003 Haas Mini-HMC is the design behind the EC-300. The Mini-Hmc features a dual pallet changer and 15"x15"x10" work envelope. This is a show machine and comes fully loaded with options, such as: 30HP Vector Drive, 12000 RPM Spindle, 24-pocket Side-mount Tool Changer, and 2000 IPM Rapids.
When Haas Automation, Inc., first introduced its line of Mini machines – the Mini Mill, Super Mini Mill and Mini Lathe – it took the industry by storm. These innovative products provided a previously unheard-of combination of high capabilities, compact footprint and affordable price. Haas continues that trend with the latest addition to the Mini line – the new Mini HMC.
High speed and extreme versatility were the key design criteria for this innovative machine. The Mini HMC features a twin pallet changer (300 mm pallets) that allows the operator to load and unload parts on one pallet while the machine mills parts on the other. Once machining is complete, a servo-driven changer swaps pallets in a mere 2 seconds to maintain nearly constant spindle time. A built-in 4th axis provides precise positioning for multi-sided parts and tombstones, or allows simultaneous 4-axis motion for complex geometries. Ultra-fast ballscrews and high-torque servo motors on all axes provide rapids up to 2,000 ipm and accelerations to 0.75 g to reduce cycle times, and a 24-pocket side-mount tool changer swaps tools in just 2.8 seconds.
While gravity helps clear the chips, there is also plenty of coolant available for any machining operation. The Mini HMC features a 90-gallon coolant tank integrated into the base, and a high-volume coolant pump. The user-friendly Haas CNC system provides seamless machine operation and is easy to learn and operate.
The new Mini HMC from Haas Automation, Inc., is a state-of-the-art horizontal machining center that provides high-speed milling capabilities in an affordable package designed to pump up a shop’s parts volume.
* Built-in 4th axis capabilities
* Inline, direct-drive system
* Couples motor directly to spindle
* Accelerations to 0.75g to reduce cycle times
* 24-pocket side-mount tool changer
*FEATURES ARE SUBJECT TO VERIFICATION PRIOR TO PURCHASE.
This item has been inspected by: EAGLE CNC Service an Maintenance. EAGLE CNC is an independent technician who specializes in Haas Machines. Their inspection covers the basic operation of the machine. EAGLE CNC noted that this machine is in like-new condition and that was possibly a show machine due to it being fully loaded with options. Haas Factory Outlet - Torrance confirmed that this is a show machine. Scroll down for more inspection notes.
As with any piece of equipment, new or used, this item will require additional inspection after it arrives due to the vibration during transit. We recommend you hire a professional service person to wire the machine, test it and perform any necessary service adjustments before putting it in to production. Please refer to the pictures for this item's cosmetic condition. This item is sold as pictured.
"Run Time: 2818:48 Hours / Tool Change: 15325 / Servo Time: 2721:30 / Motion Time: 1039 / Spindle Time: 1105:32"
"Check Out Options: BT Tools / Rigid Tap / PGM Coolant Spigot, Macros, Memory Lock, Loaded (Show Machine), Very Clean - Little Use - Like New"
"Lub: holds pressure, Spindle: Check out movement, Pallet Changes - not enough air pressure to fully TC (tank not connected), TC functions and switches fully functional individually."
"This is a show machine fully loaded. Prototype - smaller than EC-300 XY 15" Z 10" travel."
-Sharon of EAGLE CNC Service and Maintenance
Items over 12000 lbs. will be sent via open-bed freight. These items cannot be palletized, put on a skid or crated through our company. Machinery movers will be contracted to remove the item from our showroom and load it on to an open-bed freight truck. These movers will be using specialty equipment which increases the cost of their service. You will be charged a minimum rigging fee of $400. We may charge more in the case of items located outside our showroom.
Dimensions: 120x108x108H in. appr.
