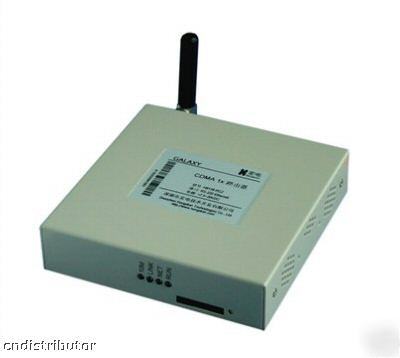

New huawei competible cdma router, 450 band in box
With Huawei module build in, 450 single band. +5VDC, +7.5 to 26VDC Optional.
Come with SMA Antenna(2.5m), RJ45 cable, Power Adapter.
Requirements towards information system are varied because of different features of numerous industrial applications. Mobile telecom service providers are required to provide industrial application solutions not only meeting common specifications and also individual special ones. Hence, the manufactuere of this device co-operates with mobile service providers to design products and network configurations suitable to industrial end users’ individualized applications. The Manufacturer of this device has developed embedded, advanced and reliable Galaxy mobile CDMA X1 router for the applications.
CDMA X1 network can provide a maximum bandwidth up to 300Kb/s and actual transmitting and receiving bandwidth reaches 100Kb/s. Since manufacturer of this device has many years experience of mobile data communication, it proves that this manufacturer's products are widely applied and work stably. Galaxy family router is a dedicated ideal data transmission channel for industrial applications. It can be operated at CDMA X1 network by selecting a different radio module.
1) Non host support: Normally, CDMA X1 Modem can be connected to a PC, and then dial an access number manually; it utilizes the PC resources to process the data transmission and protocol conversion. Galaxy router is an embedded platform built-in with a processor, RTOS, protocol stack and application software. It works automatically without host PC.
2) Always online: Galaxy Router will automatically attach to CDMA X1 network when it is powered on, and then set up a transmission channel.
3) Toll on traffic: Galaxy Router can be configured to work always online; it is charged according to traffic.
4) High speed: Maximum CDMA X1 network bandwidth can be 300Kbps. However, the bandwidth will depends the operator's policy.
5) Routing and NAT functions: Galaxy router provides routing table and NAT function; it is an ideal solution for branch office connection or SOHO application.
6) Simple and flexible to use: Galaxy router is a powerful and easy to used device. It is easy to build your own private mobile data network.
* Ease to use, reliable and flexible
* Support dual band CDMA X1 network
* Support multiple protocol conversion
* Support data center communication
* Support NTP or CDMA network clock
* Transparent data transmission
* Support virtual private data network
* Ethernet or RS-232/485 interface
* Self-diagnostic and alarm output
* Support radio network data envelope counting
* Ethernet or dial-up network routing (Backup)
* WEB/Telnet management interface
* Local/remote firmware upgrade
* Local/remote TFTP firmware upgrade
* Local/remote profiles backup and retrieve
* Support Class 2.0 Group 3 facsimile
* Complied with IS-95A, IS-95B CDMA interface
* Serial data interface: RS-232(DCE) or RS-485
* Serial data rate: 300 to 115,200 bits/s
* Configuration interface: WEB/RS-232
* Voltage: +5VDC(+7.5~12VDC Optional)
* Operation temperature: -10~+50ºC
* Related humidity: 95%(non-condensing)
* Transparent data transmission
* Support virtual private data network
* Ethernet or RS-232/485 interface
* Self-diagnostic and alarm output
* If you have any technical problem or quality issue with the product, please contact us within 30 days of receiving the product for exchange or refund (exclude S&H). No risk, guaranteed!
* We are a well known distributor in China, let us help you source and reduce cost on quality products!
* Thank you for looking. If you have any questions, please drop us a note ****@gmail.com
