New velleman HPS10SE 2MHZ personal scope 10MS/s
Internet Security By ControlScan Internet Security By ControlScan Internet Security By ControlScan Internet Security By ControlScan
* up to 2MHz analogue bandwidth
* 5mV to 20V/div in 12 steps
* 200ns to 1hour/div time base in 32 steps
* dBm, dBV, DC, rms ... measurements
* signal markers for Volt and Time
* frequency readout (through markers)
* trigger mode: run, normal, once, roll, slope +/-
* X and Y position signal shift

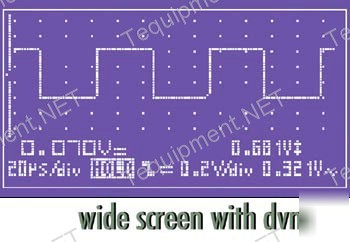

* DVM readout with x10 option
* audio power calculation (rms and peak)
* recorder function (roll mode)
* signal storage (2 memories)
* LCD: 128x64 pixels / high-contrast
* up to 20h on alkaline batteries
* maximum size battery is 2000mA (bigger batteries will not fit)

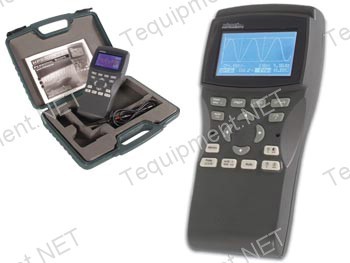

* The HPS10SE has the same great features as the HPS10, but comes in a rigid carrying case and has a blue LCD with white backlight.
The Velleman HPS10SE is not a graphical multimeter but a complete portable oscilloscope at the size and the cost of a good multimeter. Its high a very high sensitivity - down to 0.1mV/div - and extended scope functions make this unit ideal for hobby, service, automotive and development purposes. Because of its extreme value for money, the PersonalScope is well suited for educational use in schools and colleges. Suitable for measurements on audio equipment, mains voltage applications, digital signals, all kind of sensors, signal analysis in automotive applications, car stereo, etc… Its full auto setup function, makes measuring waveforms very easy.
Models, Options, & Accessories
PERSONAL SCOPE 10MS/s - SPECIAL EDITION
HANDHELD OSCILLOSCOPE 2MHz BANDWIDTH
HANDHELD OSCILLOSCOPE 12MHz BANDWIDTH
*NOTE: There is a $50.00 minimum on all Velleman orders
10MHz for repetitive signals (2MHz for single shot events)
Maximum input amplifier bandwidth
2MHz ( -3dB at 50mV, 1V & 20V /div x1 setting)
1Mohm // 20pF (standard oscilloscope probe)
100Vpeak (AC + DC), 200Vpeak-peak (AC only)
DC, AC and GND (GND for auto zero reference)
Run, Normal, Once, Roll mode for 1s/div and slower timebase
256 samples with 2 memories, max. 125 samples visible (256 using X shift)
(0dBm= 0.775V in 600ohm)From -73dB tot +40dB (up to 60dB with X10 probe) +0.5dB accuracy
(0dBV= 1V)From -75dB tot +38dB (up to 58dB with X10 probe) +0.5dB accuracy
From 0.1mV to 80V (up to 400Vrms with X10 probe) 2.5% accuracy
Peak to peak AC range (sine wave reference)
0.1mV to 160V (1mV to 1200V with x10 probe) 2% accuracy
Input sensitivity range in 12 steps
5mV to 20V/division at X1 - 50mV to 200V/div at X10
9VDC/ min 300mA adapter (unregulated) 12VDC if regulated
Alkaline type AA or Ni Cd / NiMH rechargeable (5 pcs required)
Charge current for rechargeable batteries
Up to 20h with Alkaline batteries (OFF or standby current < 500µA)
Dim- 105x220x35mm (4.13x7.95x1.38â€) Weight 395g (14oz.) ex. Batteries
