3/4 brown & sharpe screw machine and attachments

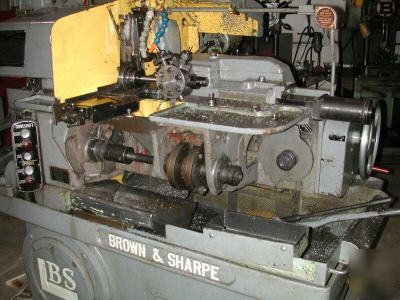

3/4" BROWN & SHARPE AUTOMATIC SCREW MACHINE
MODEL: #2 Square Base S/N: 542-2-3775 -3/4

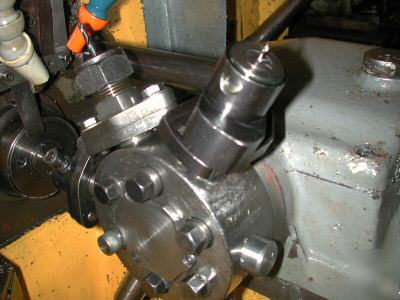

WITH REVOLVING TOOL ATTACHMENT AND CROSS DRILLING ATTACHMENT

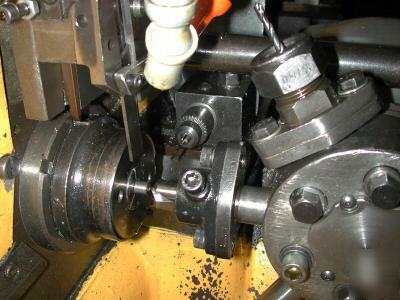

ROTATING TOOL CAN DRILL OFF CENTER HOLE IN THE FACE OF A PART.

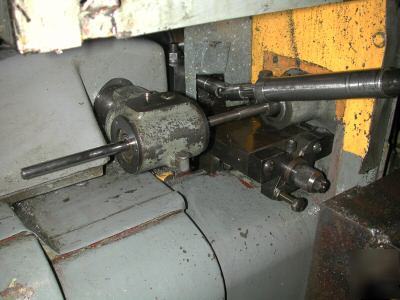

CROSS DRILL ATTACHMENT WILL DRILL A CROSS HOLE IN THE OD OF THE PART.
2 SPEED MACHINE , SECOND SPEED IS USED TO BRAKE THE SPINDLE FOR THE LIVE TOOL
ALSO COMES WITH A SIMPLE AIR BAR FEEDER THAT WILL ALLOW YOU TO MACHINE
SPINDLE CAPACITY....................... 3/4" ....13/16"
SPINDLE SPEEDS......................... 25 TO 5050 RPM
DIAMETER OF TOOL HOLES IN TURRET....... 1"
APPROX. DIMENSIONS..................... 6' x 3' x 5'
APPROX. WEIGHT......................... 4,500 LBS.
POWER................220 / 3 Phase / 20 AMP
If someone want the revolving tool attachment only or the cross drilling attachment only . I may for the right price remove
them from the machine and sell them separately.
I can power the machine if someone wants to see it run.
please contact. David @ ph (***) 633 0038
