14" x 48" cincinnati univ cylindrical grinder #24637

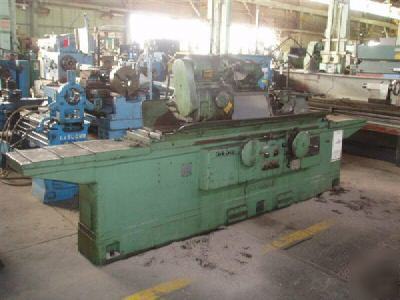

14" x 48" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER
Internal Grinding Spindle Attachment (Swing-Down Type)
Automatic Pick-Feed Attachment
1 HP AC Workhead - Coolant System (Built-In)
Tailstock (Lever & Screw-Type)
Swing Over Table, Maximum.............. 14-15/16"
Distance Between Centers, Nominal...... 48"
Grinding Wheel Diameter, Standard...... 14"
Grinding Wheel Width, Range............ 1" to 1-1/2"
Grinding Wheel Hole Diameter........... 5"
Table Swivel Taper Toward Wheelhead.... 3-3/4 TPF
Table Swivel Taper Away Wheelhead...... 1 TPF
Table Swivel Angle Toward Wheelhead.... 9 DEGREES
Table Swivel Angle Away Wheelhead...... 2 DEGREES
Workhead and Tailstock Center Tapers... 10 B&S
Workhead Spindle Speeds, Range......... 25 to 225 RPM
Table Longitudinal Feeds, Range........ 3 to 220 IPM
Automatic In-Feed at Table Reversal.... .0004 to .014 IPR
Grinding Wheelhead Spindle Motor....... 5 HP/1745 RPM
Internal Grinding Attachment, HP....... 2 HP
Workhead Motor, Horsepower............. 1 HP
Hydraulic Motor, Horsepower............ 1.5 HP
Electrical System...................... 220-440/3/60
Floor Space Required, L x D............ 15'5" x 5'10"
Weight, Approximately.................. 8650 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $6,950.00
All machines/equipment subject to prior sale.
