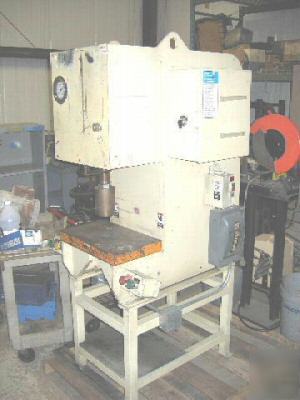

8 ton dake hydraulic c frame stamping punch press
Item ......................................... Hydraulic C Frame Press, More Details will be added soon
Manufacturer.......................... Dake
Model.......................................
Serial Number .........................
Capacity .................................. 8 Ton
Type.......................................... C - Frame
Stroke....................................... 12"
Distance ................................... The specs sheet from Dake says it is 12-1/2" Under Ram but as it sits right now it measures 6-1/2" under the ram.
Table Size.................................. 11-1/2" x 19"
Ram Free Speed ...................... 481 Ipm
Ram Work Speed .................... 39 Ipm
Ram Return Speed .................. 447 Ipm
Overall Height .......................... 74"
Condition................................... Nice used. It just came out of service, I have not run it yet but I was told it runs just fine.
Motor ...................................... 220/440/3 phase
Approx. Weight ...................... 2000 lbs.
Approx. Replacement cost .... $17,500.00
stroke, activated byproximity switch, permitsaccurate control of rammovement._ Remote pressureadjustment easily setsmaximum pressuredesired._ Light-sensitivethumb pads must beengaged simultaneouslybefore ram will move andcannot be mechanicallyby-passed._ Run-jog selectorallows fast, easy jobset- up._ Hydraulic cylindersare manufactured to withstand3000 psi, but areused at less than 2000psi to prolong service life.
