Spindle mount for h.f. 1/4" trim router, cnc, mill, pcb
Here is Another Affordable Product by Modular CNC!

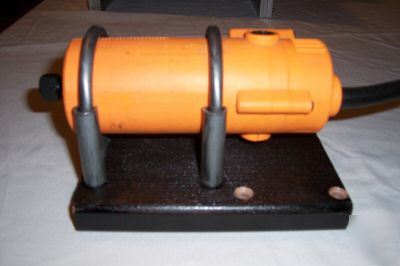

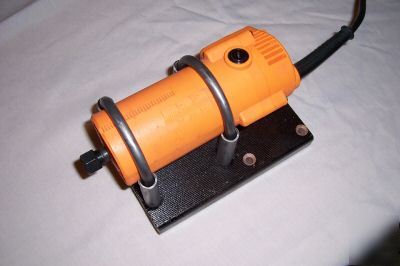

Spindle Mount for the Harbor Freight 1/4" Laminate Trim Router.

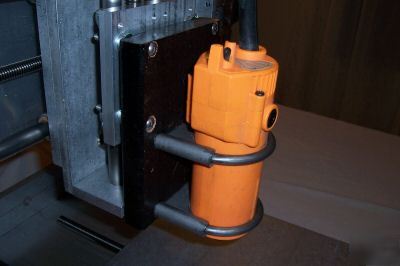

* Easy and Simple design, has mounting holes in plate to attach to your Z-Axis.
* Made of 7/8" thick plastic material with two steel u-bolts. The u-bolts used have an additional piece that wraps all the way around for full contact and positioning of the spindle unit.
* This mount is designed for the Harbor Freight 1/4" Trim Router but it will fit any Spindle with a body diameter of 2.50" +/- .020" (63.5mm +/-.50mm)
* Very easy to modify plate to match your own hole pattern as needed.
* Overall dimensions of plate are 7/8" thick x 5" wide x 6 3/4" long.
Email me if you have any questions.
