Mdi acu-6
ACU-6 can be configured to control one account or multiple accounts via firmware. Up to eight (8) ACU-6 units can be interfaced to a single RTU. Each ACU-6 communicates with the RTU via a FIM22 using 2-wire twisted pair cable using standard 2-wire RS-485 communications.

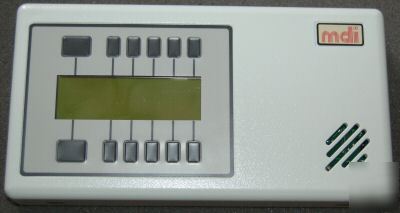

The ACU-6 uses an unmarked keypad in combination with a four-line, 80-character Liquid Crystal Display (LCD) for security code entry and data selection. Six unlabeled “soft†keys are located above and six below the LCD. In some modes of operation five of the keys above and below represent the numeric keys (0 – 9). These keys may be labeled in four different methods; horizontal (1,2,3,4,5 on top, and 6,7,8,9,0 on bottom), vertical (1,3,5,7,9 on top and 2,4,6,8,0 on bottom) or, for higher security, Rotational and Rotational-PLUS.
The Rotational method presents a new arrangement of number assignments to the keys for each use. The Rotation-Plus presents a new arrangement of number assignments to the keys after each keystroke. In either Rotational modes the keys are always shown in numerical order, similar to the horizontal method, however the starting point is always different and randomly determined.
This dynamic keypad labeling makes available the following ACU-6 functions:
Provides functionally integrated system of access control, alarm monitoring and facility controls
OPEN or CLOSE account (requires entry of a 5-digit "user" security code)
Display Account Status: OPEN, CLOSED, ENTRY DELAY or EXIT DELAY
Display Status for up to 64 zones in the account on one screen: SAFE, ACTIVE ALARM or FAULT, ACTIVE ALARM and MASKED, SAFE and MASKED
Display ACTIVE ALARMS only (one at a time) with full descriptive text name
Display MASKED ZONES only (one at a time) with full descriptive text name
Display CURRENT TIME or REMAINING OPEN TIME (hh:mm:ss)
ARM, DISARM, MASK, UNMASK individual alarm points, and FORCE CLOSE ACCOUNT with alarm points masked (requires entry of a 5-digit code)
