Vaculex 150LBS vacuum tube lift lifter hoist vacuhoist
Vaculex 150lbs Vacuum Tube Lift Lifter Hoist VacuHoist

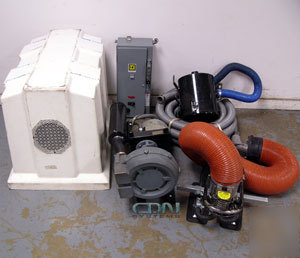

This lot is a complete Vaculex & VacuHoist vacuum lifting setup, recently pulled from a working production line. We tested the pump and suction foot and they are in good working order. Cosmetic condition is Fair overall, with several blemishes from use (see photos). We have a few of this type of vacuum lifter, and this lot has the same model blower as the others, (which is where we got the specifications for the motor). There is a sound deadening box to keep the noise level down, as well as a fused motor disconnect. The suction foot has 2 suction feet which are adjustable, and the valve is a VacuHoist rated to lift 70kg / 150lbs. The foot is arranged for lifting flat surfaces, such as boxes, sheets of steel, wood, or cardboard, and so on. NO manuals or accessories are included if not shown. Photos show the actual items you will receive.
* Vaculex 305304 regenerative vacuum pump / blower, comprising
* 4.6kW Siemens 3-phase AC Motor
* FPZ (Effepizeta) Vacuum Blower
* Vaculex belt drive housing with springloaded quick change belt tensioner
* VacuHoist Model VH 160 lifter
* 2-cup adjustable suction foot with up / down / quick release controls
* Non-return top valve / swivel mounted to lift tube
* 30 feet of vacuum hose to connect the air filter to the lift tube
* High efficiency air filter with mounting bracket
* SquareD combination motor controller fused power input / switch box
* Lift capacity: 150lbs / 70kg
* Motor rated for 3Phase 440VAC to 480VAC
* For more information, please refer to the Vaculex brochure (.pdf file)
