Used w.a. whitney model 630 duplicator punch press
SANSON MACHINERY GROUP IS PLEASED TO OFFER:

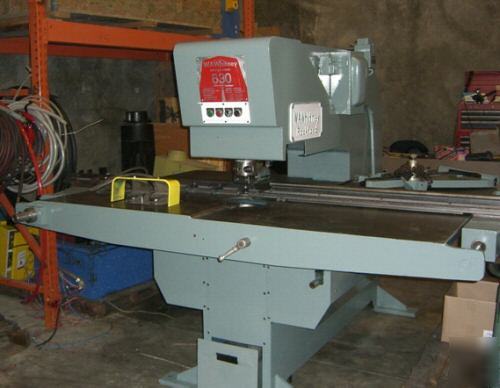

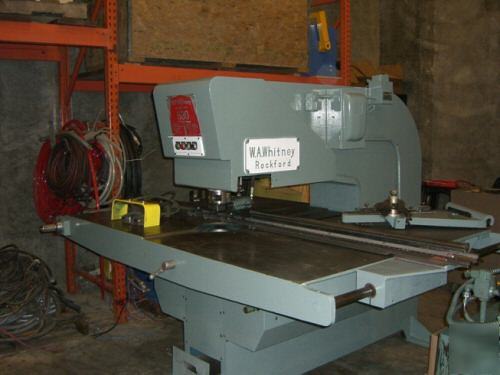

USED W.A. WHITNEY MODEL 630 DUPLICATOR
W.A. Whitney Model 630 Duplicator
· 630 capacity thru mild steel
· Depth of Throat with gaging: 30"
· Stroke: 1 3/4" max. adj. up and down to 3/8" min.
· Strokes per minute at 1/2" stroke: 80
· Maximum material with duplicator and gaging: 1/4"
· Maximum material using 630-002 stripper assy.: 1/2"
* Hole in main press ram: 1 9/16 dia. x 2 1/4" deep
