150 ton heim ss press 3" str 45 spm air clutch nice

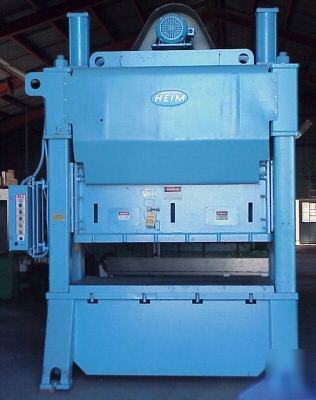

(1) Used 150 Ton HEIM 150 Model S-150-42-78 Straight Side Back Geared Twin Drive Double Crank Punch Press; Serial #3363; New 1986
Capacity.......................…………... 150 Ton
Stroke.........................….…………. 3"
Shut Height Over Bed (SDAU)..... 12"
Power Ram Adjustment...........….. 6"
Bed Area.......................…………... 78" L-R x 42" F-B
Slide Area......................………….. 78" L-R x 30" F-B
Bed Opening....................…………. 72" L-R x 24" F-B
Window Opening..................…….. 22-1/2"
Speed..........................…………….. 45 S.P.M.
Distance Bed to Floor.........…….... 38-1/4"
Air Friction Clutch and Disc Brake with Dual Calipers
Solid State Electronic PC Controls
2 Operators Stations (Pedestal Type/Dual Palm Buttons)
(2) Pneumatic Counterbalance Cylinders to Ram
Bijur Automatic Centralized Lubrication System
Overall Dimensions: 95" L-R x 63" F-B x 140" High
Weight: 18,000 Lbs. (estimated)
F.O.B...................Casa Grande, Arizona
