Amperex 7580W/4CX250R tetrode tube

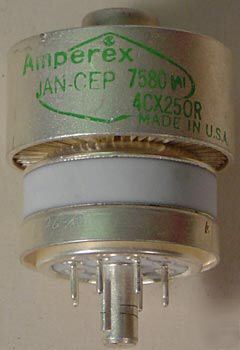

Amperex 7580W/4CX250R Tetrode Tube
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Richardson Electronics and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
Used in Ham Radio, Induction Heaters, Plasma Generators, RF Generators and much more.
The Eimac 4CX250R/7580W is designed specifically for use in Class AB1 liear amplifiers where shock and/or vibration preclude the use of nonruggedized tube types. The 4CX250R/7580W will replace the 4CX250B in equipments where the range of bias adjustment will tolerate this higher perveance tube and where tuning range can compensate for the small differences in input and output capacitances. The 4CX250R/7580W will deliver more output in most linear amplifiers which presently employ the 4CX250B and it will operate with maximum rated plate and screen voltage applied in equipments where shock and/or vibration is experienced.
Peak Anode Voltage (kV): 2.000
Peak Cathode Current (A): 2.700
Typical Anode Current (A): 0.250
Typical Anode Dissipation (kW): 0.250
Typical Anode Voltage (V): 2,000
