Fluke dsp-4300 digital cable analyzer CAT5E CAT6 test

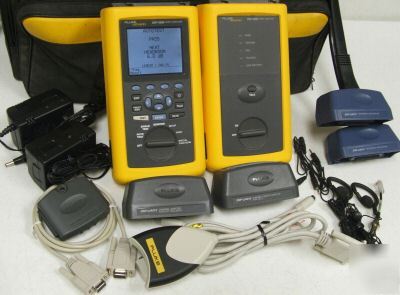

Fluke DSP-4300 CAT5 / CAT5e / CAT6
Digital Cable Analyzer w/ Accessories
This unit is currently in transit from CALIBRATION

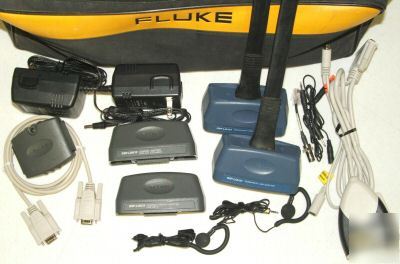

Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty

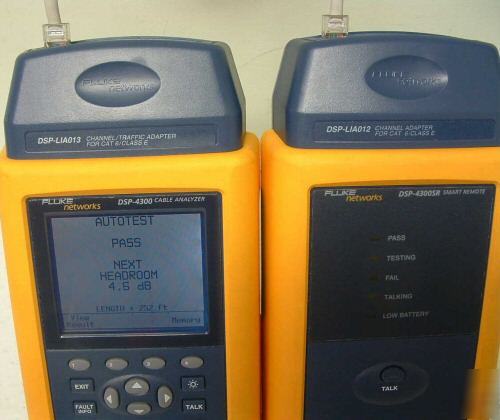

Fluke Networks DSP-4300 Digital Cable Analyzer
It exceeds the Cat 5, Cat 5e, and Cat 6 specifications, achieving Level III accuracy. It also features automatic diagnosing of cable faults, and tells you exactly where the fault is in meters or feet. It is comparable in performance to most desktop models, with the added benefit of being handheld.
With its large on-board memory, you can store a full day's results inside, or detach the multimedia card and plug it into your PC. Featuring Fluke Corporation's LinkWare Cable Test Management software, you can easily review and analyze results for both fiber and copper. Software allows you to edit, view, print, and archive your data. You can then export the data to a PDF.
With the DSP-4300, you can monitor traffic through your Ethernet. Regardless on whether you're using 10BASE-T or 100BASE-TX, you can detect and measure impulse noise better than any other tester on the market. You can also identify hub port connections and tell what standard is met by the respective connections.
The DSP-4000 Series can boost your bottom line by providing fast, accurate testing of high-performance Cat 5e, Cat 6 and fiber optic cabling. Equipped with an exclusive digital platform, this series of testers ensures repeatable accuracy, no matter how many times you retest a link. With high-bandwidth test capabilities to 350 MHz, superior diagnostics and extensive reporting, the DSP-4000 Series provides you with a complete solution for testing, certifying and documenting copper and fiber. And like all Fluke Networks instruments, they're built rugged to withstand the drops and other mishaps that occur in today's network installation environments. The DSP-4300 is the most comprehensive cable testing and certification solution for high-speed copper and fiber networks available.
* (2) CAT5 / CAT5e / CAT6 Permanant Link Adapters
* (2) CAT5 / CAT5e / CAT6 Channel Adapters
* LinkWare Test Management Software
