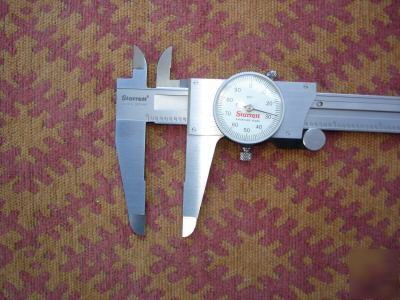

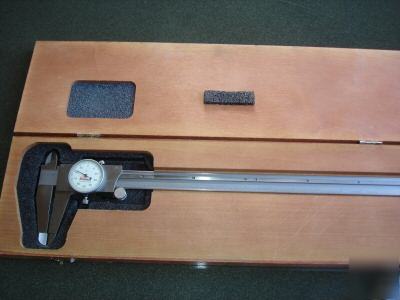

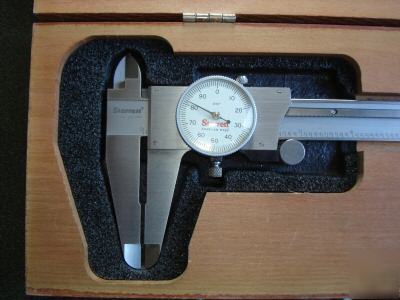

Starrett 120A 12" dial caliper with case
12", White Dial, with Case 120-12 INCH
The Only American Made Dial Caliper ... This is one of the handiest measuring tools available, used by mechanics and toolmakers everywhere. It is direct reading, reliable and accurate.
Sharp, clear dial graduations of .001" – .100" in one revolution
Sharp, black graduations on the satin finished bar, every .100"
Knife-edge contacts for both inside and outside measurements
One hand use with the thumb-operated, fine adjustment roll
Lock screw for holding the sliding jaw in position A detachable depth rod is available for the 12" model
Parallel lines can be scribed on a workpiece by setting the caliper jaw to the required dimensions, locking the movable jaw with the lock screw and then using the front edge of the fixed jaw as the scribing surface
Accuracy and Long-Life Features
Hardened stainless steel bar, measuring surfaces, rack, gears and depth rod
Positive, split-gear anti-backlash control
Rack teeth point down to make it easy to shed foreign matter and thereby keep the area clean
Approximate Jaw Depths for 120 Series 12":
