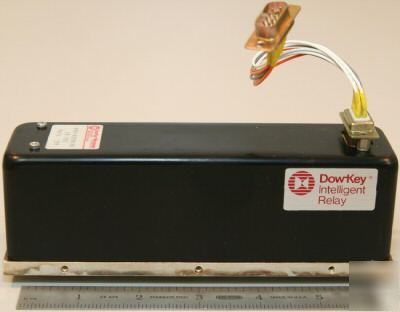

Dow-Key SP8T (Single Pole Eight Throw) Intelligent Relay Multithrow Switch SMA DC-18 GHz Model 483-420803E
Removed From Equipment - Untested
Dow-Key 483-420803E Specifications:
* Frequency Range: DC to 18.0 GHz
* VSWR (Max), DC-12 GHz: 1.5:1
* VSWR (Max), 12-18 GHz: 2.0:1
* Isolation (Min), DC-2 GHz: 80 dB
* Isolation (Min), 2-8 GHz: 70 dB
* Isolation (Min), 8-12 GHz: 65 dB
* Isolation (Min), 12-18 GHz: 60 dB
* Isolation (Typ. Operating): 60 dB
* Insertion Loss (Max), DC-2 GHz: 0.2 dB (Ports 1-3), 0.3 dB (Ports 4-6), 0.4 dB (Ports 7-8)
* Insertion Loss (Max), 2-8 GHz: 0.4 dB (Ports 1-3), 0.5 dB (Ports 4-6), 0.8 dB (Ports 7-8)
* Insertion Loss (Max), 8-12 GHz: 0.5 dB (Ports 1-3), 0.7 dB (Ports 4-6), 1.0 dB (Ports 7-8)
* Insertion Loss (Max), 12-18 GHz: 1.0 dB (Ports 1-3), 1.5 dB (Ports 4-6), 2.0 dB (Ports 7-8)
* Insertion Loss (Typ. Operating): 0.8 dB
* Switching Time: 15 mS Maximum
* Operating Mode: Latching, Self Cutoff
* RF Termination (Inactive Port): 50 Ohm 2W
* Actuator Control Signal: CMOS BCD Decoding & MOSFET Driver, Commercial
