JD2 tn-100 tube notcher pipe coper tubing notch TN100

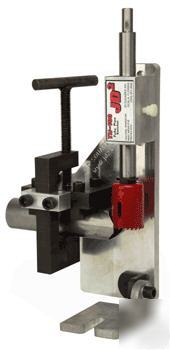

JD2 TN-100 Tube and Pipe Notcher
* Large capacity and low cost - The TN-100 notches 3/4" through 2" O.D. tubing at angles up to 50° in under 20 seconds. It uses commonly available bimetal hole saws costing approximately $10. A single bimetal hole saw will typically notch 3 to 5 complete cars.
* Easy to use - The TN-100 may be mounted in a drill press or simply clamped in a vise and used with a 1/2" hand drill. The TN-100 can be laid horizontal when notching 45° angles, so the floor will not interfere with the tubing being notched.
* Heavy duty frame - Entirely CNC machined, the frame is made from 1/2" thick 6061-T6 aluminum and its face has been milled flat. The degree increments are then machined directly into the frame so they can't wear off. An all position swivel base ensures easy setup.
* Rigid bearing block - This is the most critical part of a hole saw style notcher. The TN-100's bearing block uses twin needle bearings and separate grease seals for maximum rigidity and reliability. A 3/4" ground and polished stainless steel shaft protects against the possibility of rust contaminating the precision bearings.
* Strong, accurate tube cradle - As can be seen in the picture, the entire cradle and clamp assembly have been CNC machined out of a solid steel block so the tube will be notched exactly in the middle. This eliminates the problems of tube walk in notchers that use a U-strap.
