> Lambda lm-E5 low voltage regulated dc power supply 20 a
Lambda lm-E5 low voltage regulated dc power supply 20 a

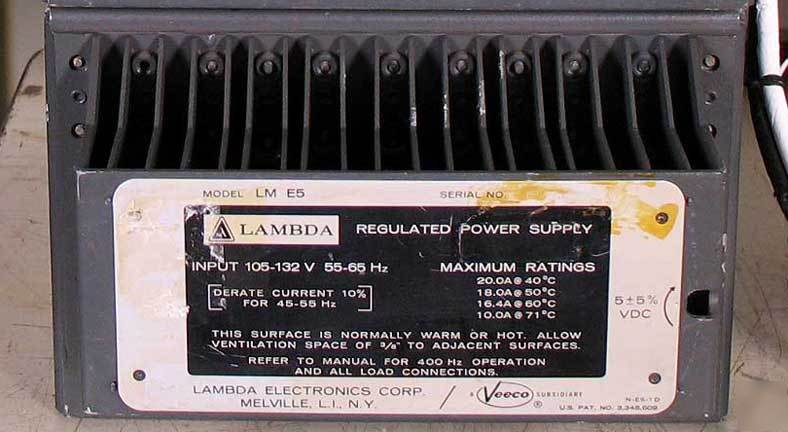

Lambda LM-E5 Low Voltage Regulated DC Power Supply 20A
Please review item Description & Condition
MANUFACTURER'S Specifications:
* 105 - 132 vac @ 55 / 65 Hz
The following specifications apply for all Lambda E package LM power supplies. Speci-
fication exceptions noted here relate to models incorporating model option "Y" and/or "T". Performance specifications do not change for models with suffix "R", e. g., LM-E2-R unless the
models also include model options "Y" and/or "T" e. g., LM-E2 - YR; for these models the appropriate specification exceptions also apply.
NOTE: Specifications in italics apply only for Lambda models with a "Y" suffix, e. g., LM-E2- Y. AC INPUT specification with an asterisk*, applies only for Lambda models with a "V" or "T" suffix, e. g., LM-E2-YT.
DC OUTPUT-Voltage regulated for line and load
Voltage Range...5V +/- 5% @ 20A
Multi-Current Ratings.... Current ratings specified for each maximum ambient temperature apply over entire output voltage range, with input frequency 55-65 cps. For input frequencies 45-55 at 105-132 VAC, 200-250 VAC, or 205-265 VAC, delete 40'C rating.
For input frequencies 360-440 cps, consult factory for current ratings.
For maximum current ratings at each ambient temperature see table I of pertinent model group.
Regulation (line)... Less than 0. 05 percent plus 4. 0 millivolts for input variations from
... Less than 0. 01 percent plus l. 0 millivolt for input variations from
Regulation (load)... Less than 0. 03 percent plus 3. 0 millivolts for load variations from
0 to full load or full load to 0
... Less than 0. 02 percent plus 2. 0 millivolts for load variations from
0 to full load or full load to 0
Cosmetically and physically this unit is in basically good condition although the images will show some scratching and age
This unit comes from a working large-scale industrial/lab environment
F no other accessories, manuals, modules, probes, orig. packing, etc.
Contact via E-mail for more information.
Lambda LM-E5 Low Voltage Regulated DC Power Supply 20A
Image Gallery (click thumbnail for larger view)
Item is sold without accessories probes, power cord, software, carrying case, etc.) unless specifically mentioned in the above description.
No implied or expressed warranty unless otherwise stated.
Item descriptions are as accurate as possible but may contain errors.
Photo images are of the actual item. What you see is what you get.
Technical information is provided as available.
We reserve the right to rescind any sale if not contacted within 3 days.
