New baileigh hpb-25 25 ton horizontal press brake
BRAND NEW BAILEIGH Model HPB-25 Horizontal Press Brake 25 Ton with outfit equipment 220V 3 PH
WE ARE AN AUTHORIZED BALEIGH INDUSTRIAL DISTRIBUTOR
Horizontal Bending press dimensions Width

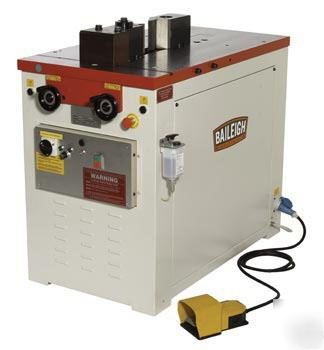

This is the HPB-25 horizontal press brake. Its special structure makes it ideal for press bending, bending, punching, and cutting of all types of section bars, flat bars, and tubes. The positioning of the cylinder under the workbench allows freedom of action for any type of operation on the workbench, and the controls set at the front of the machine give the operator a high degree of control over the working area during the operating phases.
Our horizontal press brakes have the following features: 1.) Most tonnage for dollar invested; 2.) Cylinder under work table allowing for better accuracy and more work surface; 3) User performs operation in front of the machine instead of the side of the machine making it easier to produce quality products, and frontal position on our press brakes is protected and practical position for the operator; 4.) The HPB-25 horizontal bending press uses two hand wheel for adjusting stroke in and stroke out, making the HPB-25 one of the simplest horizontal press brakes to operate, meaning more profit dollars to be produced.
The HPB-25 horizontal press brake stands for 25 imperial tons of power. Twenty-five tons is the proper tonnage for approximately 50 % of all horizontal press brake applications. Companies interested in a horizontal press brake should start with a machine with a capacity no lower than 25 tons. The HPB-25 employs our unique cylinder under the table allowing for the perfect flat open work table environment that will bring more profit to the end user. This series is a simple series where the operator controls the stroke in and the stroke back by two hand wheels. Simplicity means profit.
The workbench is manufactured in tempered and ground steel, the carriage runs on double guides with dust scraper and forced lubrication. The mobile pin moves at two speeds and the stroke is adjusted via a high precision electrical limit switch. Lubrication system on the HPB-25 horizontal press brake allows for years of operation.
