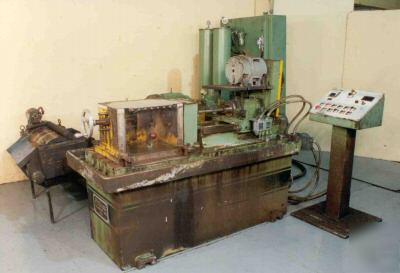

1-1/4" x 18" phillips single spindle gun drill
1-1/4" X 18" PHILLIPS SINGLE SPINDLE GUN DRILL
SERIAL................................. 95032
MODEL ................................. GH1
MAXIMUM DRILL DIAMETER ................ 1-1/4´´
MAXIMUM DRILL FEED STROKE ............. 18´´
MAXIMUM DRILL SPEED ................... 2500 RPM
DRILL FEED RATE (VARIABLE) ............ .5 TO 12 IPM
DRILL CENTERLINE TO WAYS .............. 5´´
WORK PAD FIXTURE AREA (T-SLOTTED) ..... 24´´ X 24´´
RACINE COOLANT PUMP OUTPUT ............ 20 GPM @ 1000 PSI
SCR CONTROL FOR BALLSCREW DRILL FEED
BARNES DRILL #CS-5 MAGNETIC COOLANT SEPARATOR
RAPID ADVANCE - RAPID RETRACT - AUTO CYCLE CONTROLS
15 HORSEPOWER RACINE COOLANT UNIT
CALL US AT 800/MACHINE (800/622-4463) TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
