> Gri 15926-001 bellows metering pump gorman rupp

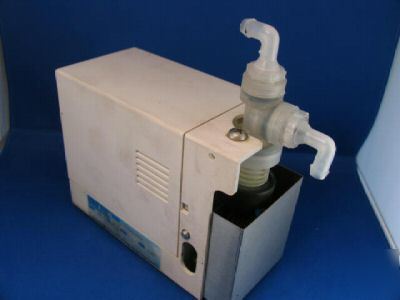

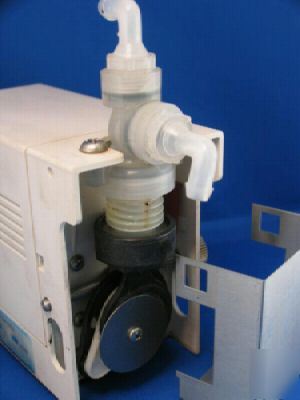

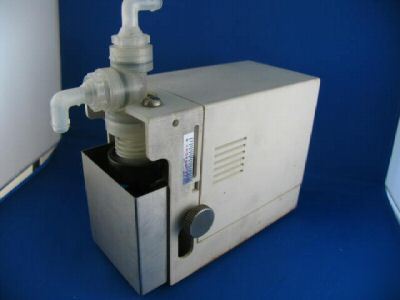

Gri 15926-001 bellows metering pump gorman rupp
See below for my current available quantity of these.
All are in similar condition and were in service until the machine they fed was dismantled for parts.
240 volts .. 50/60 amps .. 165 RPM
I have included the pasted information below for your reference
Bellows metering pumps operate on a positive displacement principle. The rotation of the motor shaft is transmitted into a reciprocating motion through a lever pivot crank mechanism. This motion provides a continuous squeezing and relaxing force on a bellows module, forcing fluid in and out of the module. Pumps are designed to displace both corrosive and noncorrosive fluids. Accurate to +/- 0.5% from stroke to stroke, when pump is set 50% to 100% of full stroke. Discharge pressure is maintained over the entire flow range of the pump. Poppet valves are utilized to prevent backflow, preventing siphoning through the pump in applications where a positive suction head exists.
Typical applications include film and x-ray processors, silver recovery systems, wafer and silicon chip washers and silicon chip washers and processors, detergent dispensers, blood analyzing equipment, industrial floor scrubbers, thermo therapy equipment, waste removal systems, and wastewater and water treatment systems
* Repeatability from stroke-to-stroke to +/- 0.5%
* Superior corrosion resistance
* Long, maintenance free operation
* Maximum flow 945 ml per minute
* Maximum temperature 140º F
If you are dissatisfied, return it for a full refund..
Please direct any questions to Mark at
****@charter.net
