Tektronix 321A portable oscilloscope w/ case 7348
Tektronix 321A DC-6 mHz Portable Oscilloscope

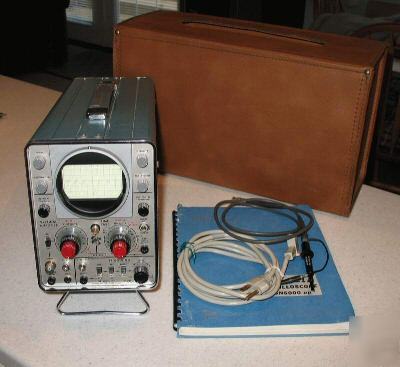

Nice used 321A, late production with FET vertical preamp, case, manual, nicad batteries and probe.
The Type 321A is a high performance DC to 6 mHz oscilloscope suitable for a wide variety of applications, including audio distortion testing, amateur radio modulation testing, power supply tests, and low-speed computer work. It features the same triggered sweep that the larger Tektronix labroratory oscilloscopes. The x-y feature allow frequency comparisons and phase testing of amplifiers.
This oscilloscope can operate from a wide variety of power sources including AC, internal batteries and external DC.
115 V Ac 45 to 800 Hz. 20 watts.
External DC supply 11.5 to 35 V < 700 ma.
Internal "D" batteries, rechargeable or non-rechargeable. (not included)
Sensitivity: Calibrated 10 mv/div to 20 V/div.
Dimensions: 8 3/4 x 5 3/4 x 16 1/2
Weight: 14 3/4 pounds (with case, 27 pounds)
This scope comes with an original leather carrying case for the scope and accessories.
Included Accessories: Case, AC power cord, manual, miniature probe, ten good .4 Nicad batteries.
A manual describing this unit fully can be downloaded free at http://bama.edebris.com/manuals/tek/321a/
This unit is covered by my 1-year warranty (3 months on the crt). See bottom of page for details and limits.
If you have any questions or would like additional pictures please email me at ****@telus.net
