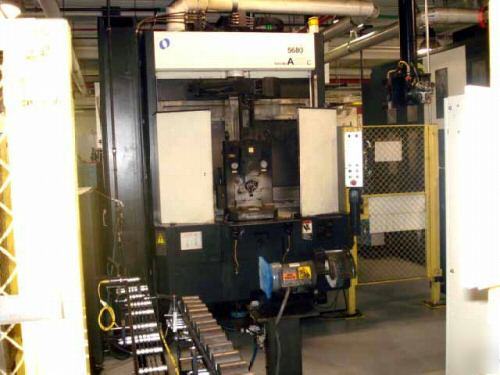

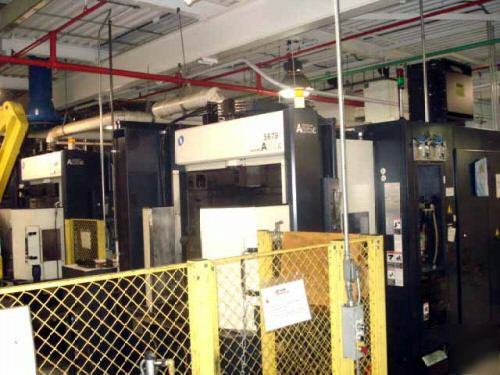

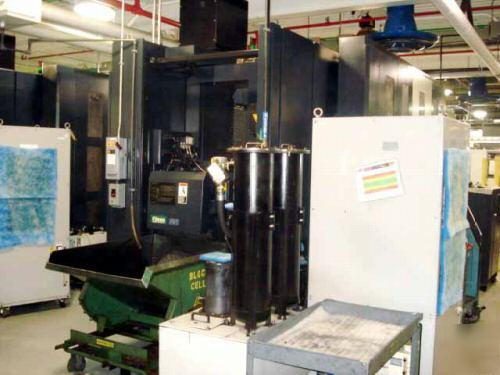

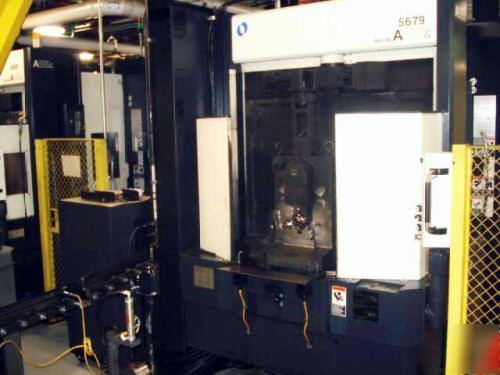

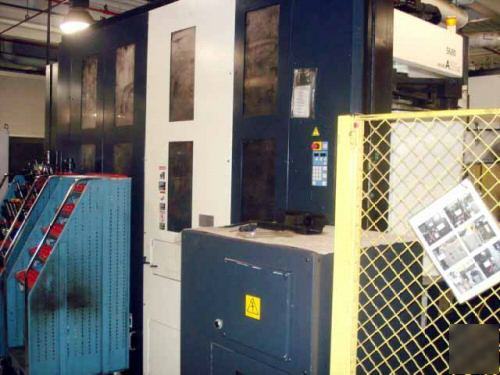

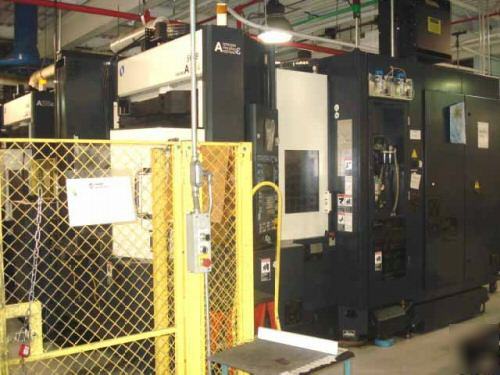

Makino model a-55E horizontal machining center
MAKINO MODEL A-55E HORIZONTAL MACHINING CENTER
Pro 3 (Fanuc 16iM) CNC Control. 10.4" Color LCD. Fourth Axis Rotary Table. Coolant Thru Spindle (Balcrank 1000 psi). 90 Tool Magazine. Overhead Shower Coolant. Overhead Hydraulic Fixture Clamping System. Robot Interface. GI Control. Custom Macro B with 82 Variables. AC Spindle Load Monitor. Tool Life Monitoring. Spare Tool Selection. Rigid Tapping. 1050 ft. Memory. Rear Discharge Filcon Filter and Chip Conveyor System. Oil Chiller. Air Dryer.
Spindle Center to Table Top 3.1" - 25.2"
Spindle Nose to Table Center 2.8" - 26.4"
Spindle Acceleration 2 Seconds
Maximum Workpiece Size 24.8" dia. x 39.4"H
Rapid Traverse Rates X and Y 3700 IPM
Rapid Traverse Rates Z 3307 IPM
Tool Change Time T-T 2 Seconds
Tool Change Time C-C 4 Seconds
Maximum Tool Diameter 2.76" / 6.7"
Machine Dimensions 183.1"L x 75.5"W x 111"H
