Tektronix PG501 pulse generator. 5HZ to 50MHZ.


Tektronix PG501 Pulse Generator.
Frequency range: 5Hz to 50MHz.
Simultaneous plus and minus outputs into 50 ohms.
Up to 5 volt out @ 3.5ns into 50 ohms.
Power frames that this can be used in: TM 500, TM 5000.
I tested this unit and it seems to be in good operating condition.

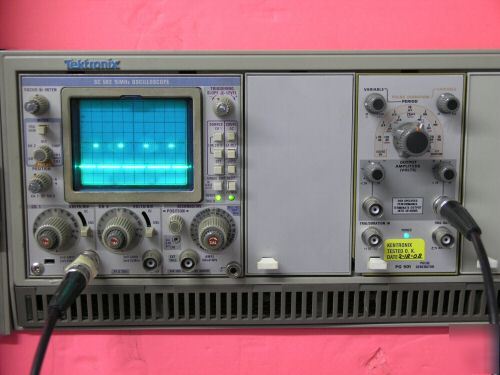

In the second picture I am demonstrating the out from the PG501 being monitored by my SC502 oscilloscope. NOTE-the SC502 and the power frame are not part of the sale.

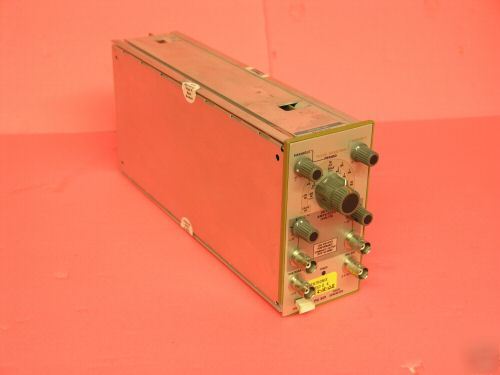

DAMAGE NOTE: the bezel has a chip out of it on the lower left hand corner.

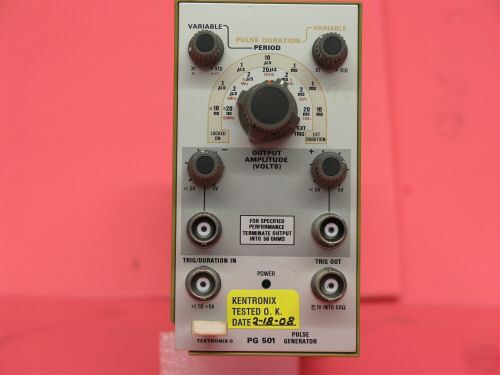

A note about the "TESTED OK" sticker: I apply this sticker to items that I have varified working in the most basic way. I do not test all functions nor does this imply that the item has been calibrated.
There is no manual or other accessories supplied with this sale.
I am selling this unit without a right of return.
