Jessup engineering hoist plating automatic manual line

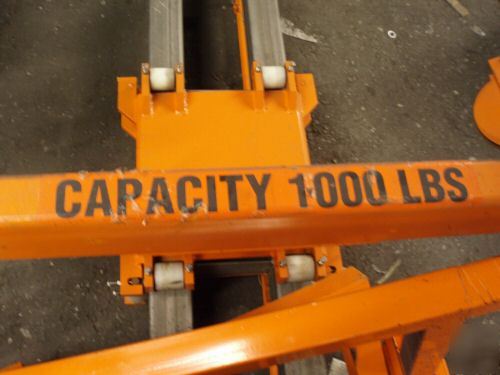

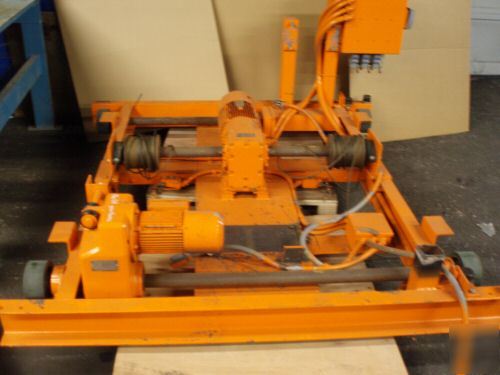

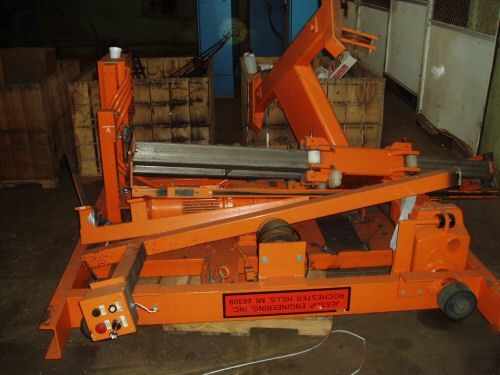

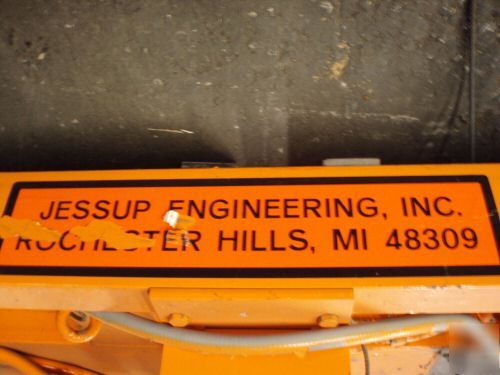

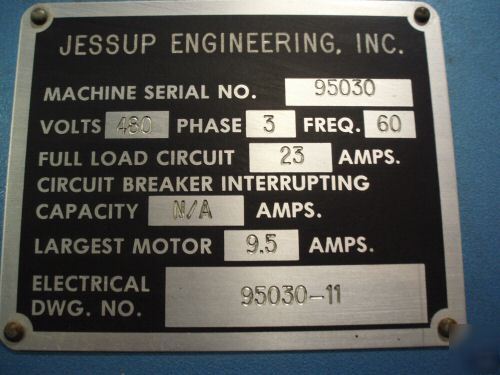

Like NEW Jessup Engineering Automatic or Manual Wagon Lift Hoist With Control Panel. New install that lost business to Mexico. Ser# 950030 480v 3 phase power. Has been in storage since 2002. Orange Wagon lift has SEW Eurodrive travel and SEW Eurodrive lift motors. Rated at 1000 lb Lift capacity. Hoist wagon designed for lifting and moving flight bars/ carriers/ plating fixtures/ cleaning fixtures/ etc..from one dip station to another station. Wagon designed to run on Structural steel C channels spaced approx 60" apart ( no structrual steel avialable)

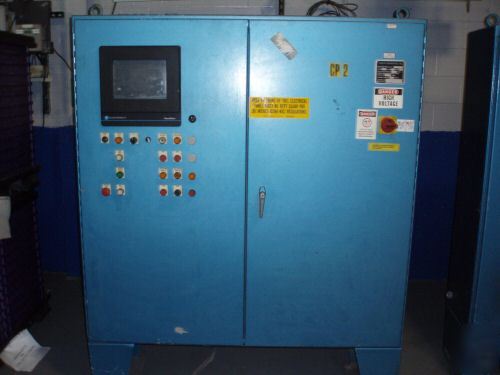

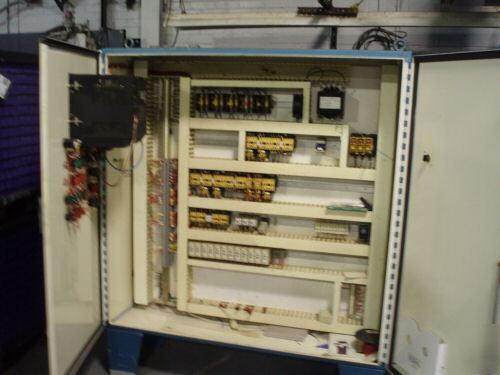

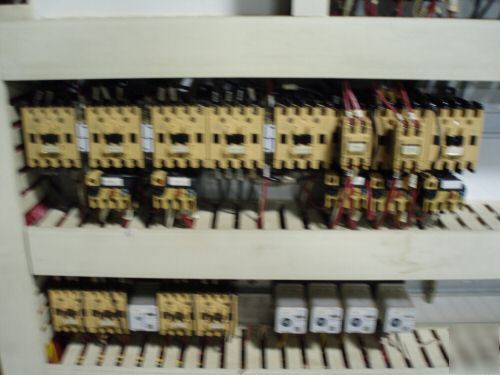

Would make a nice spare wagon hoist or pannel for existing line. Panel comes with motor straters ( lift / lower/ & travel forward/ travel reverse) and fused disconnect with Panel View screen. SEW eurodrive motors are one of the best drives in the market. Manual overide control arm and lift mast will need to be rewelded to wagon ( removed for storage). Compare to a new hoist from Jessup !!!.

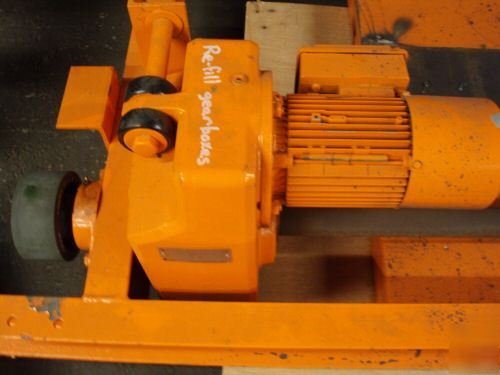

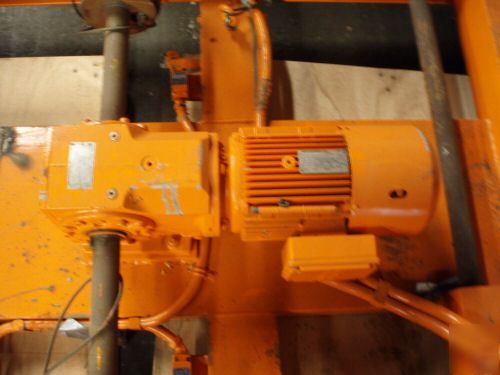

Lift motor- Type: DFV112M8/4BMS8NR TEFC 3PM SO: 850064442.95.95.001 V:460 /YY 60hz A:3.70/4.15 Code:M HP: 1.6/3.0 SF:1.0 Conect Diag: DT33 Duty: Cont. RPM 850/1740 Brake 460V Torque: 40.6 lb.ft Control: B6E1.5
Lift Gear Box- Type: KA76BDV112M84BM68NR SO: 850064442.95.95.001 IN: 850/1740 RPM OUT: 31/63 RPM Torque: 2850 lb.In Service Factor: 1.0 Ratio:27.66
Mounting position: M2 Lubrication: Mobil 3NG /G90
Travel Motor- Misssing placard - info should be avail from SEW Eurodrive as this is original motor for SO travel gear box listed below.
Travel Gear box- Type: FA70DT80N8/2BN61NR SO:850064262.95.95.001 IN:810/3310 OUT: 17/70 RPM Torque:720 lb.In Service Factor: 1.0 Ratio: 47.03
Mounting Position: M2 Lubrication: Mobil 3NG/ G90
