New lot of 28 port 203A-3 digital panel meter brand new
http://newportelectronics.com/Pdf/203A.pdf
http:// /Products/Mechancl/18-26.htm

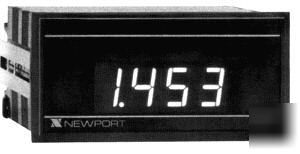

3 1/2 DIGIT DC VOLTMETER WITH BCD OUTPUT
Bright, 0.56 in (14.2 mm) LED display
High-impedance 3-wire ratio input
Isolated, stored, three-state parallel BCD
NEMA-4 splash-proof lens cover
Model 203A is a low-cost ±1,999-count DC voltmeter with unbuffered, non-isolated parallel BCD output as a standard feature. This output is good for about 1 feet and allows the 203A to be interfaced to a digital comparator (Model 872A) or a printer (Model 820A). For applications which require long cable runs or multiplexing of BCD signals, three-state, isolated, parallel BCD output is available as an option.
The meter main assembly can be electrically configured for four input ranges and high-impedance 3-wire ratio input. Upper-board options include three BCD output boards. Mechanical options for the standard 1/8 DIN case include a screw-terminal barrier strip for signal and power and a splash-proof lens cover which meets NEMA-4 standards. A NEMA-size case is optional. For additional information, please refer to the Options and Mechanical sections.
