9109 / TDA9109-sn TDA9109S / TDA9109 / TDA9109SN
Now over 1,400 items in our Store!
Low-Cost Deflection Processor For Multisync Monitor

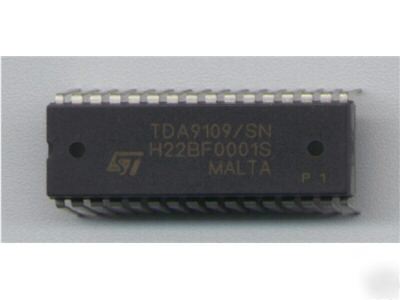

The TDA9109/SN is the upgrade for the TDA9109S, TDA9109N, and TDA9109. These chips are original ST Micro.
The TDA9109/SN is a monolithic integrated circuit assembled in 32 pin shrink dual in line plastic package. This IC controls all the functions related to the horizontal and vertical deflection in multimode or multi-frequency computer display monitors. The internal sync processor, combined with the very powerful geometry correction block make the TDA9109/SN suitable for very high performance monitors, using very few external components. The horizontal jitter level is very low. It is particularly well suited for high-end 15" and 17" monitors.
