1996 acura-seiki B50 bridge mill, 8000 rpm, cat 40, cnc

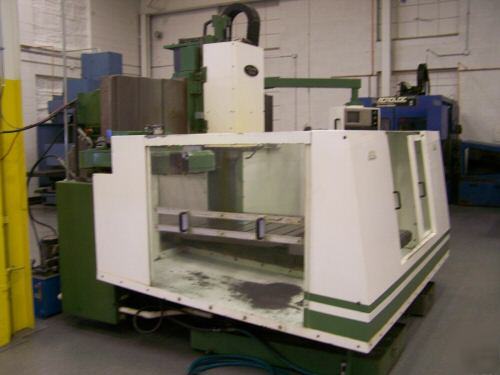

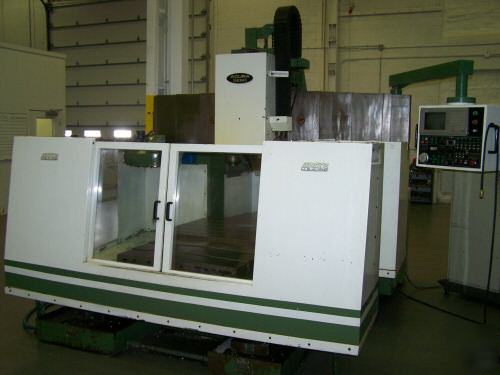

1996 Acura Seiki CNC bridge mill by Mighty USA
X 47.85 x Y 43.48 x Z 20" travels, 29" max spindle to table.

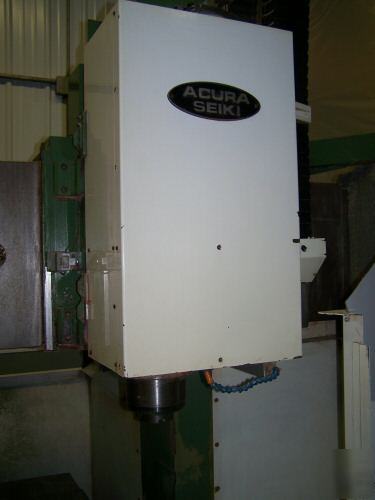

Cat 40, 8000 RPM, 20 HP, 16 tool changer, Rigid tapping
Flood coolant, spindle chiller, hydraulic counterbalance.
Small footprint (10' x11' x9.5') for such large travels!

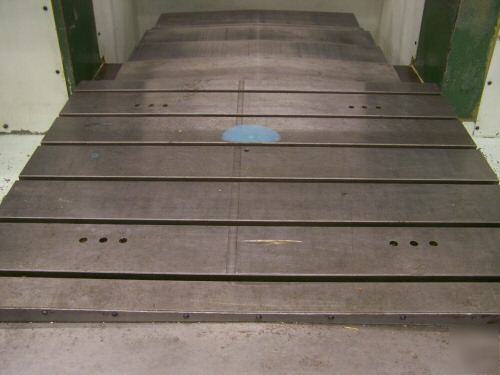

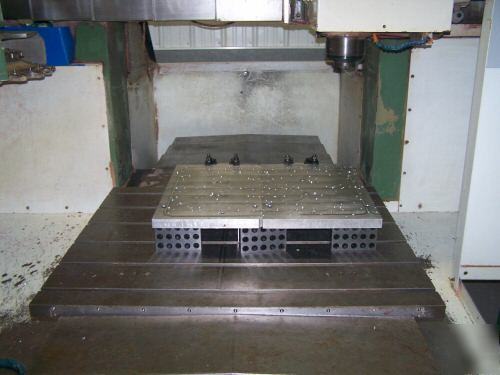

Bridge style construction makes this a ridgid machine, this machine flys through aluminum with a 2" face mill, removing impressive amounts of material per hour. 5000lb table capacity!
i am a user, not a dealer, i have used this machine to cut mostly plastic and aluminum for several years. this machine is the same as a B100 with shortened y travel. spindle sounds great from 80 to 8,000 RPM. tool changer always works, linear rails are low maintenance. This is a great machine but it is no longer large enough for our needs. This is an incredible bargain compared to similar large travel vertical mills that start at 140k new!
we converted this machine to grease lubrication for the head so we could cut foam parts without getting oil on them. the automatic oiler is still used for the bridge and table and can easily be hooked back up on the head if desired.
this machine is under power and available for inspection any time.
