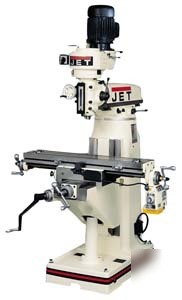

Jet vertical milling 836-3 machine R8 spindle free ship
Hardened and ground precision table
Precision ground dovetail ways
This small mill has all of the Feature found on our larger mills,
but sized for the home shop, repair shops or small maintenance shops.
Distance Spindle to Column (in.) 15-3/4
Distance Spindle to Column (min./in.) 5-1/4
Head Movement (deg.) 90° R & L
Max Distance Spindle to Table ( in.) 13-3/4
Motor 1-1/2HP, 3Ph Prewired 230V only
Note Use of static phase converter will void warranty
Overall Dimensions 55 x 52 x 78
Range of Spindle Speeds (RPM) 120–1,550
T-Slots Number and Size (in.) 3 and 5/8
Table Cross Travel (in.) 9-1/2
Table Longitudinal Travel (in.) 22-1/4
Table Size (in.) 7-7/8 x 35-3/4
Work Table Weight Capacity (lbs.) 500
One Jet Vertical Milling Machine R8 Spindle
We require a physical address on all items
Ajax E-Bay store supplies the full line of JET Products.
Need any help looking please call.
