Hp 8642B synthesized signal generator .01 - 2100 mhz

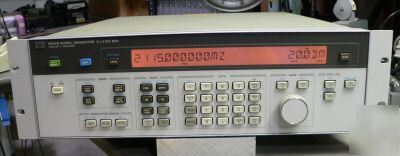

HP 8642B Synthesized Signal Generator .01 - 2100 MHz
Excellent Physical and Electrical Condition
Fully Tested - Fully Functional - Has 19" Rack Mount Ears
Comes with 7 day Return Policy if Not Completely Satisfied

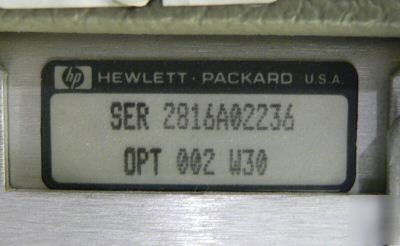

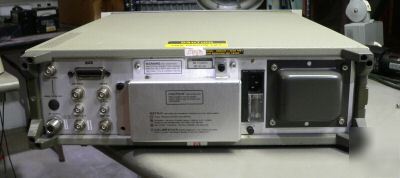

Has Option 002 - Input/Output Connectors on Rear Panel
Has Option W30 - Extended Repair Service - Not Really Applicable Any More, Sorry
Modulation Modes AM, FM, PM, Pulse
Sweep Modes: Start-stop, span, and phase continuous X-Axis Output: 0 to 10 Vdc, ±10% Y-Axis Output: TTL positive true for display blanking during retrace
Resolution: 1 Hz, 0.1 Hz with special function
Stability Standard: Aging rate: ±2 ppm/year Option 001: <10e-9/day aging rate after 8 days warmup Spectral Purity
Absolute Accuracy: ±1 dB, output level >= -127 dBm
Flatness: <= ±0.75 dB, +10 dBm output level
SWR: <1.5:1, level<0 dBm; <2.0:1, level >=0 dBm
Reverse Power Protection: 25W, from a 50 ohm source 50 Vdc Modulation Specifications
Internal Modulation Oscillator Rates: 20 Hz to 100 kHz Frequency Resolution: 1% of setting Accuracy: 2% of setting Output Level Range: 0 to 3 V peak into 600 ohns Resolution: 4 mV Accuracy: ±(4% + 15 mV) within 1 second Distortion: <0.02%, 0.02 kHz to 15.8 kHz; <0.15%, >15.8 kHz Output Impedance: 600 ohms ±10% Remote Programming Specifications
Interface: HP-IB (IEEE-488-1978)
Power Requirements: 100, 120, 220, or 240 V; +5%, -10%; 48 to 440 Hz; 300 VA max
Size: 425 mm W x 133 mm H x 617 mm D (16.75 in x 5.25 in x 24.3 in)
