2- black box LB0010A-U35-R2 v-35 remote mini bridges

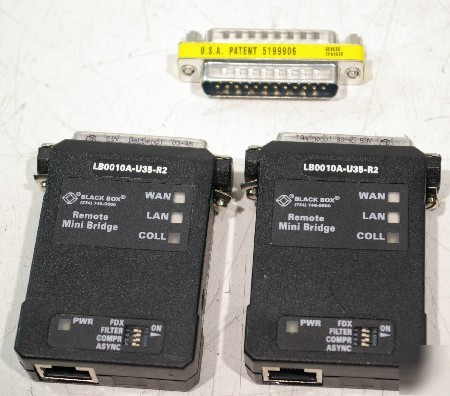

2- Black Box LB0010A-U35-R2 V-35 Remote 10Base-T Mini Bridges
2- Black Box LB0010A-U35-R2 V-35 Remote 10Base-T Mini-Bridges
Automatic aging simplifies management by keeping the address table current
Address table automatically learns up to 10,000 addresses
Use it to connect two legacy 10BASE-T Ethernet LAN segments across V-35 interfaces
Unit configures easily with just four front-panel DIP switches
Once plugged in and powered on, it begins learning the MAC-layer
addresses of each node on its segment instantly
Units goes to work, reducing your overall network traffic by forwarding only those packets bound for other segments
Unit simply plugs into your network hub or switch
Attach the WAN port to a DCE such as a CSU/DSU or multiplexor
Filtering and Forwarding Rate — 14,880 pps
Operation — Half- or full-duplex
Speed (Maximum) — LAN: 10 Mbps;WAN: 10 Mbps sync, 115.2 kbps async
Standards — IEEE 802.3/Ethernet V.2
Interface — LAN: UTP;WAN: RS-232, V.35, RS-422, RS-530, or X.21
Connectors — LAN: (1) shielded RJ-45; WAN: (1) DB25 F (pinned appropriately)
Indicators — (4) LEDs: WAN, LAN, COLL, Power
Power — Unit can be used with 100-250VAC 50/60Hz or a Standard 12VDC Power Adapter with at least 400mA (4.8watts)
Units will come with 1- gender changer to change from female to male
Units do not come with any type of power supply or 12VDC adapter
Please see the two links for more detailed information
For more detailed information we have provided this link to the Remote Mini Bridge website.
For more detailed information we have provided this link to the Datasheet website.
Used, Units appear to be in good physical and electrical condition
This item is being sold with a 30-day warranty. We do not include any type of battery in our 30-day warranty
