#220-8 cin-mila"centuramic" centerless griner #24326

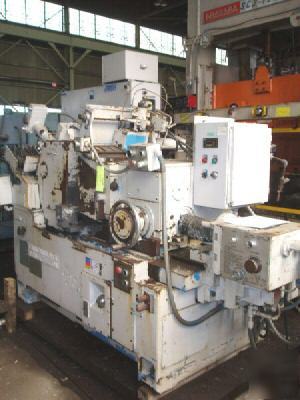

#220-8 CINCINNATI-MILACRON "CENTURAMIC"
New 1984, Serial No 350300084-0027, Model 220-8,
Dual Rate Electro-Hydraulic Infeed
Automatic Hydraulic Grinding Wheel Profile Truing
Hydraulic Regulating Wheel Profile Truing
Retrofitted DC Electric Servo On End Of Spindle
Automatic Lubrication to Slides
Diameter Capacity, Nominal............... 0" to 3"
Diameter Capacity, Maximum............... 4.5"
Grinding Wheel Diameter, Minimum......... 17"
Grinding Wheel Width, Minimum............ 1"
Grinding Wheel Hole Diameter............. 12"
Regulating Wheel Diameter, Minimum....... 10"
Regulating Wheel Diameter, Maximum....... 13"
Regulating Wheel Width, Minimum.......... 1"
Regulating Wheel Width, Maximum.......... 8"
Regulating Wheel Hole Diameter........... 5"
Regulating Wheel Speeds, Number.......... INFINITE
Regulating Wheel Speeds, Range........... 15 to 300 RPM
Regulating Wheel Speeds, Low Range....... 15 to 56 RPM
Regulating Wheel Speeds, High Range...... 56 to 300 RPM
Grinding Wheel Motor, Horsepower......... 20 HP
Regulating Wheel Motor, Horsepower....... 1.5 HP
Electrical System........................ 460/3/60
Weight, Approximately.................... 12400 LBS
PRICE: F.O.B. OUR WAREHOUSE.............. $29,500.00
All machines/equipment subject to prior sale.
